GANESH CNC LATHE GT-3080TR CNC (2009)
GANESH CNC LATHE GT-3080TR CNC (2009)
Available quantity: 1
Description
Discover quality and performance with our 2009 CNC Lathe by Ganesh Machinery, rigorously inspected by Gizmo Machine Tools INC to ensure top-notch condition. Equipped with an advanced Fanuc 0i-TD CNC Control system for superior precision, this lathe also features a 16" 3-Jaw Hydraulic Chuck for enhanced gripping. Benefit from the flexibility of its 8-Position Turret, ideal for multitasking operations. Additionally, the machine includes an Lns Fox WS1020 Mist Collector, Tailstock, Steady Rest, and a Chip Conveyor to keep your workspace clean and organized. Don't miss out on this reliable, feature-rich machine.
EQUIPPED WITH

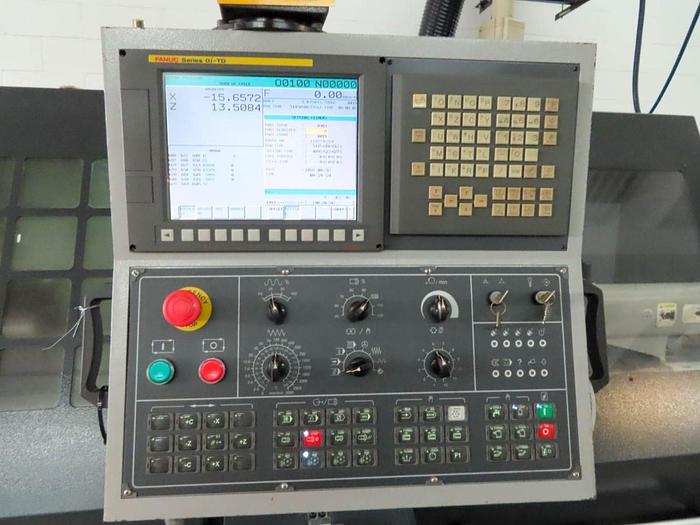

Fanuc 0i-TD CNC Control
16" 3-Jaw Hydraulic Chuck

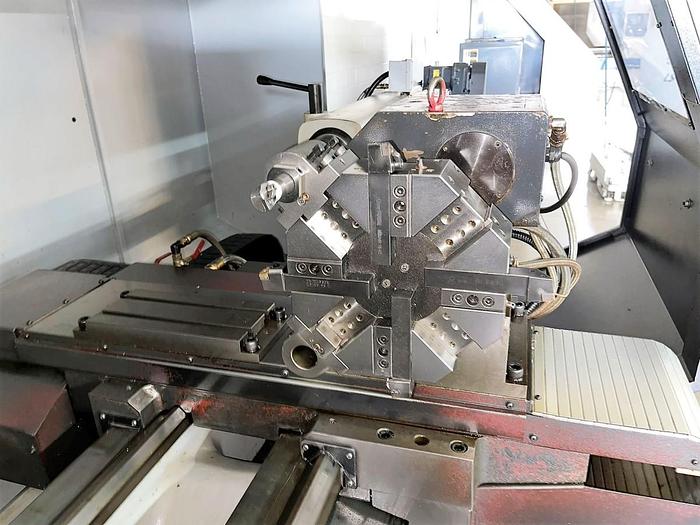

8-Position Turret
Lns Fox WS1020 Mist Collector

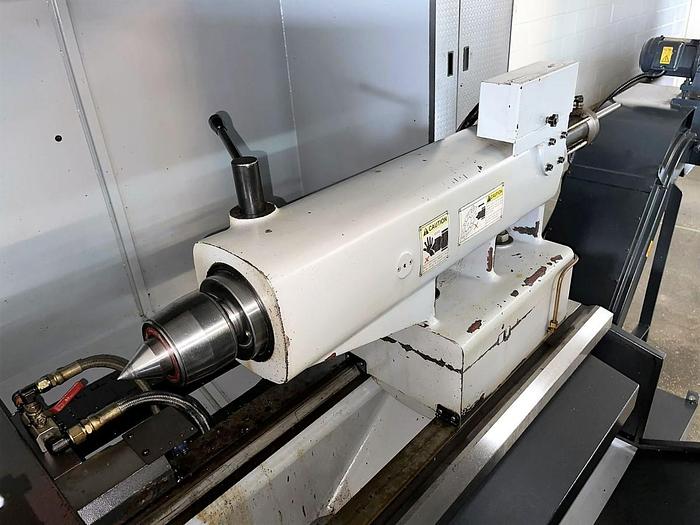

Tailstock

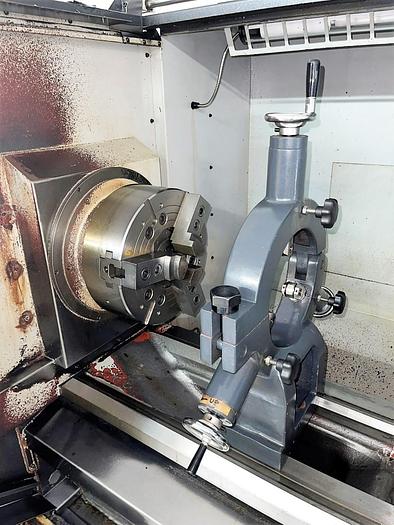

Steady Rest
Chip Conveyor
Specifications
| Manufacturer | Ganesh Machinery |
| Model | GT-3080TRCNC |
| Year | 2009 |
| Condition | Used |
| Serial Number | 30TR10110-009 |
| Stock Number | TCL-GNH-760 |
| Swing Over Bed | 30" |
| Swing Over Cross Slide | 19" |
| Center Height | 15" |
| Distance Between Centers | 78.75" |
| Spindle Speeds | 10-1000 RPM |
| Spindle Nose | A2-11" |
| Spindle Bore | 6.63" |
| Spindle Bearing | Taper Roller |
| Chuck | 16” |
| Main Motor | 25 HP |
| Bed Width | 18” |
| Bed Length | 137.75" |
| Tailstock Quill Diameter | 3.5” |
| Tailstock Quill Travel | 7.87” |
| Tailstock Quill Taper | MT#5 |
| Approx. Dimensions | 79" W x 185"L x 71" H |
| Weight | 15500 lbs. |
