Perfect SG-60120AHD Surface Grinder, Year 2019
Perfect SG-60120AHD Surface Grinder, Year 2019
Available quantity: 1
Description
This versatile machine comes with an impressive array of standard equipment, including a wheel flange, balancing arbour, wheel extractor, and a built-in electromagnetic chuck controller. Additional amenities such as a working lamp, toolbox, and a PLC auto grinding controller. Optional accessories like a wheel stand and a standard magnetic chuck are also available. Each machine has been carefully inspected by Gizmo Machine Tools INC, ensuring it meets the highest standards for performance and reliability. With Perfect's engineering and Gizmo's quality assurance, you can invest in a grinding machine designed for both precision and durability.
EQUIPPED WITH
Standard Equipment:
Wheel flange
Balancing arbor
Wheel exactor
Coolant tank
Working Lamp
Wheel dresser
Standard grinding wheel
Foundation bolt
Levelling Pads

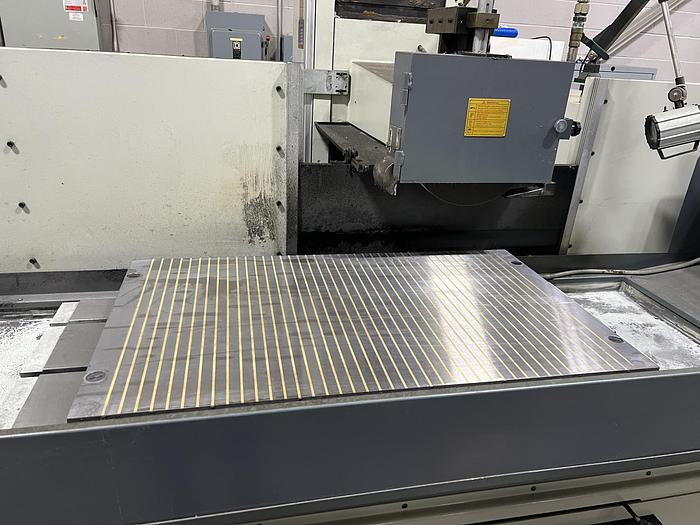

Standard magnetic chuck with built-in electromagnetic chuck controller

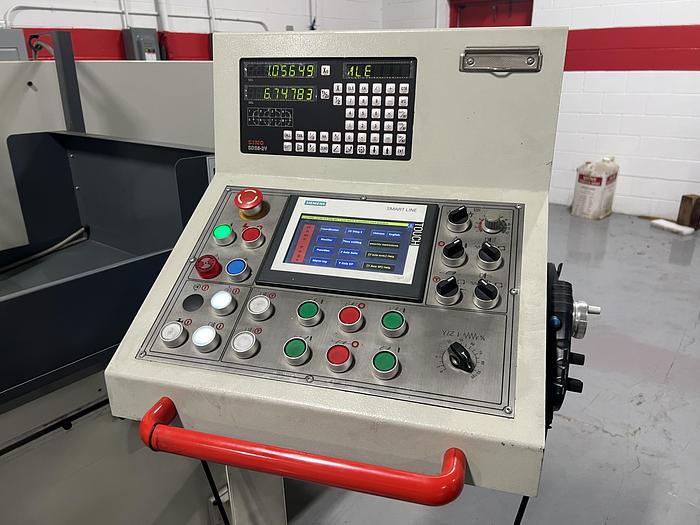

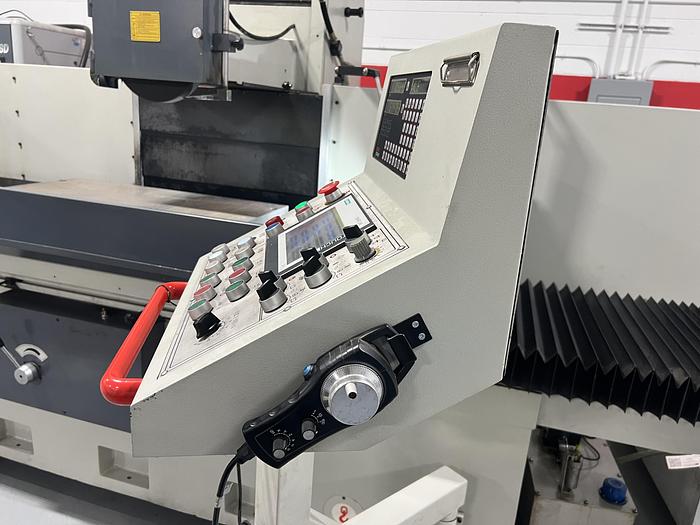

PLC auto grinding controller AHD models
Optional Accessories
Wheel stand
Coolant tank with magnetic separator

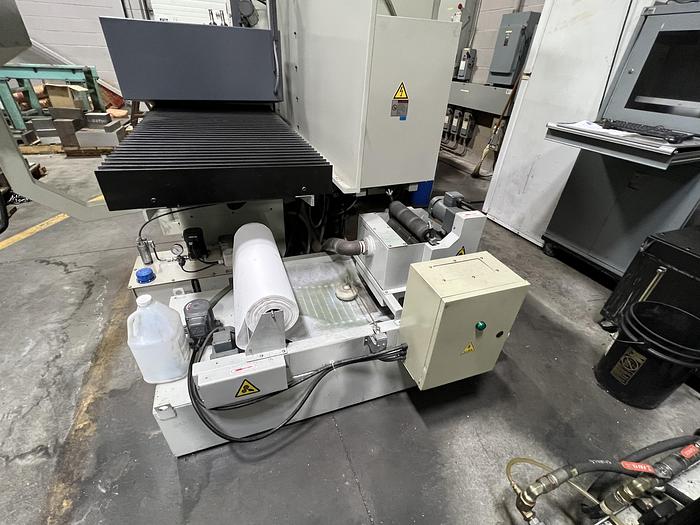

Coolant tank with paper filter
Coolant with magnetic separator and paper
Specifications
| Manufacturer | Perfect |
| Model | SG-60120AHD |
| Year | 2019 |
| Condition | Used |

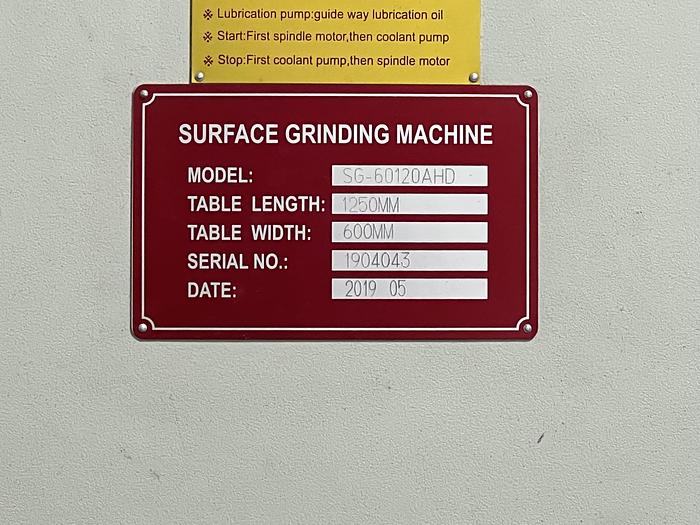

| Serial Number | 1904043 |
| Stock Number | GRD-PFT-730 |
| Table Size | 650 MM x1250MM |
| Max Grind (W x L) | 610 MM x 1200MM |
| Max distance from table to spindle center | 600 MM |

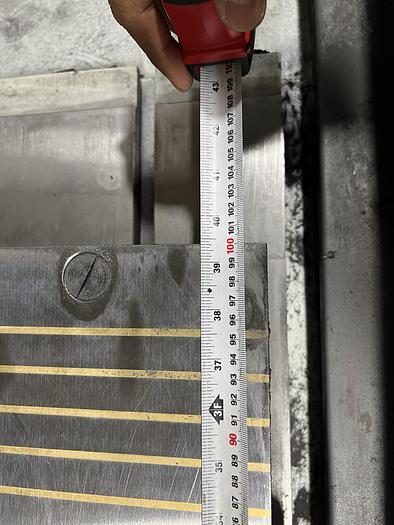

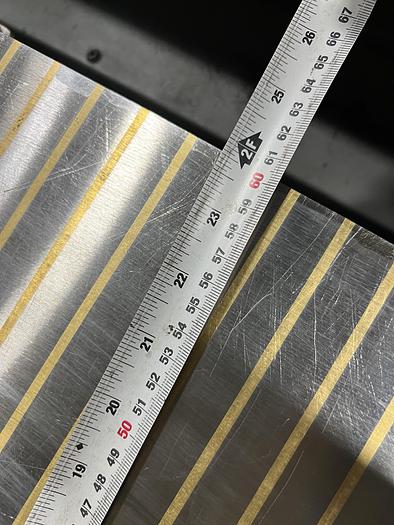

| Magnetic Chuck Size | 1000 x 600 x 1MM |
| Speed of table longitudinal movement | 5-25 M/MIN |
| Wheel head cross movement Auto feed | 0.5-20 MM/T |
| Wheel head cross Rapid speed movement | 1.25 MM/MIN |
| Wheel head cross movement feed of hand wheel | 0.02 MM/DIV |
| Wheel head vertical movement Auto feed | 0.005\0.01\0.015\0.02\0.03\0.04 MM/T |
| Wheel head vertical movement Rapid Feed | 230 MM/MIN |
| Wheel head vertical movement feed of hand wheel | 0.002 MM/DIV |
| 960(14050) Wheel Speed | 1450(50Hz) \1740(60Hz) RPM |
| 960(14050) Wheel Size | 355x (20-50) x124 MM |
| Motor of spindle | 7.5 KW |
| Max loading capacity of table | 970 KG |
| Total rated power | 14 KW |
| Height of machine | 2390 (include the packing base) MM |
| Floor space | 4740 MM x2750 MM |
| Gross weight | 6500 KG |
