FADAL 4020 VERTICAL MACHINING CENTER
Sold
FADAL 4020 VERTICAL MACHINING CENTER
Available quantity: 1
Description
EQUIPPED WITH

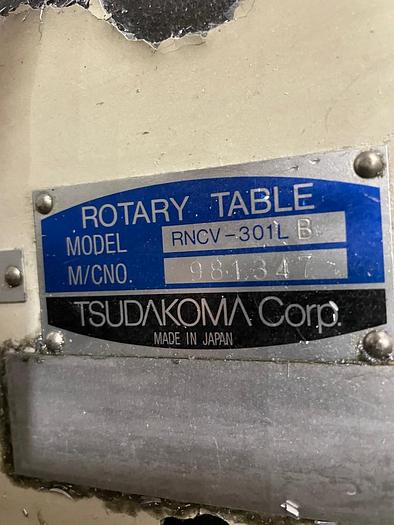

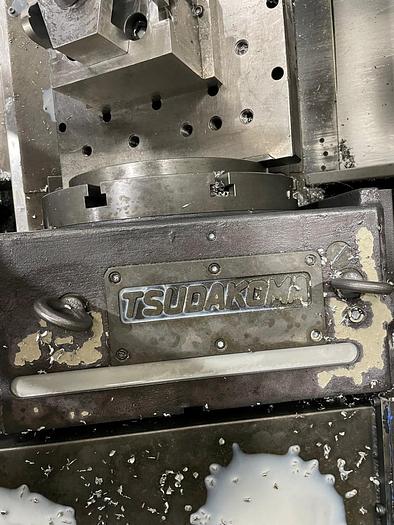

Tsudakoma 4th axis rotary table,
Rigid tapping
Servo turret.

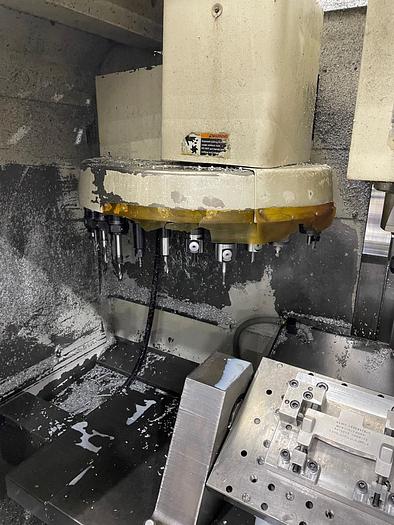

21 ATC
Transformer
Specifications
| Model | VMC-4020 |
| Condition | Used |
| Serial Number | 012000121855 |
| Stock Number | VMC-FAD-713 |
| Number of Axis | 3 |
| Table Travels (X) | 40” |
| Table Travels (Y) | 20” |
| Table Travels (Z) | 20” |
| Table Size | 48”X20” |
| Total Load Capacity | 3,641lbs. |
| Spindle Nose to Table | 4”-24” |
| Spindle Center to Column | 20” |
| Spindle Speed range | 10000 RPM |
| Spindle Taper | CAT 40 |
| Spindle Motor | 15 HP |
| Rapid Feed Rate (x,y,z) | (x,y)- 900 ipm, z- 700 ipm. |
| Maximum Cutting Feedrate: (x,y,z) | .01- 400 ipm (600 ipm at 150%) |
| Tool Size, w/o Adjacent | 4.5” |
| Maximum Tool Weight | 15 lbs. |
| Machine Dimensions | 116” L x 87” W x 104” H |
| Approximate Weight | 10,500 lbs. |
| Electrics | 220/3/60 |
