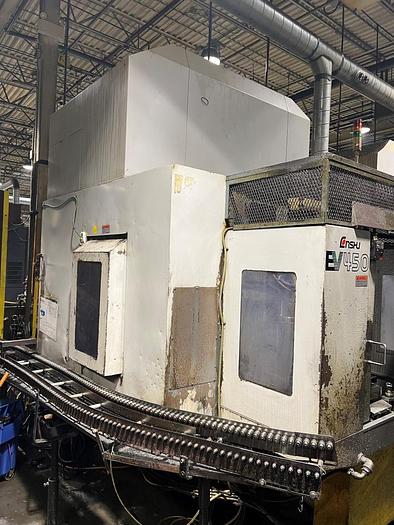

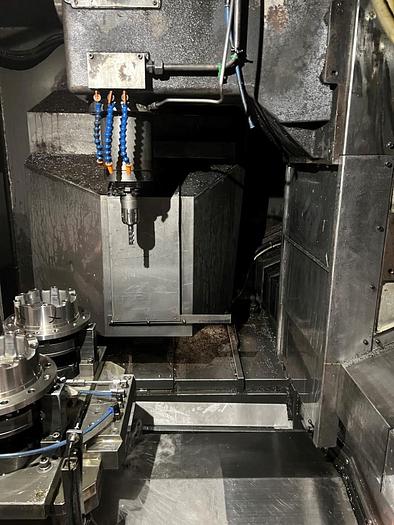

ENSHU EV-450 VERTICAL MACHINING CENTER
ENSHU EV-450 VERTICAL MACHINING CENTER
Available quantity: 1
Description
Elevate your machining prowess with the ENSHU EV-450 Vertical Machining Center, a reliable workhorse outfitted with the advanced FANUC SERIES 21i-MB Controller. Whether you're keen on precision tapping or intricate probing, this machine has you covered with its Rigid Tapping and Renishaw Probing features. The dual 20.9" x 15.7" pallets, combined with a Rotary Type Pallet Change, guarantee efficient job transitions. The Coolant Thru Spindle ensures effective cooling, while the MD Chip Conveyor efficiently manages waste. And with added bonuses like Leveling Pads, Jergens Bock Vises, and accompanying transformer and manuals, it's a holistic solution. Trust in Gizmo Machine Tools, as we've rigorously tested its performance!
EQUIPPED WITH

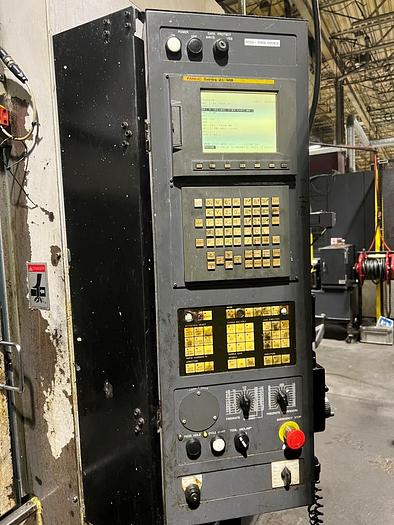

Controller FANUC SERIES 21i-MB
Renishaw Probe
Tool Offset Memory C,
(2) 20.9" x 15.7" Pallets

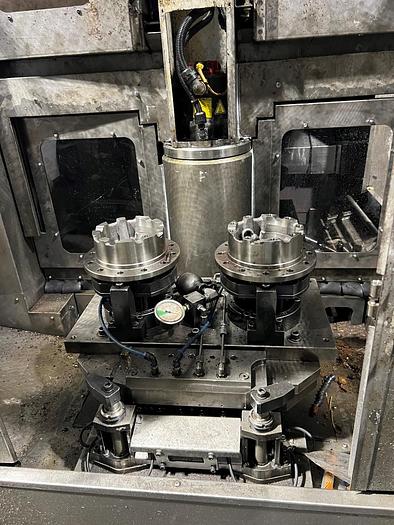

Rotary Type Pallet Changer

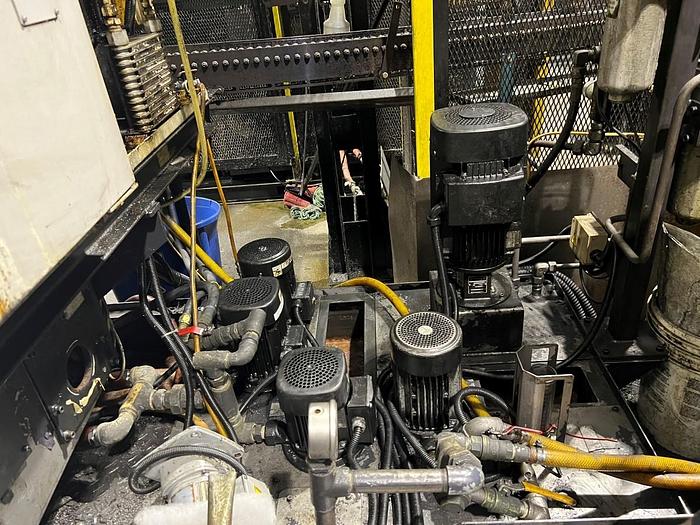

Coolant Thru Spindle

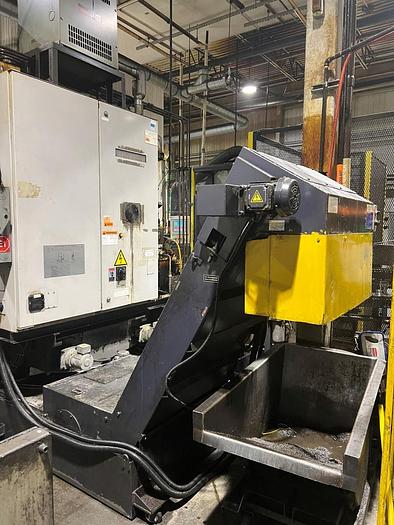

MD Chip Conveyor
Levelling Pads
Several 6" Jergens Bock Interlocking Vises
Step Down Transformer
Books and Manuals
Specifications
| Manufacturer | Enshu Ltd. |
| Model | EV-450 |
| Condition | Used |

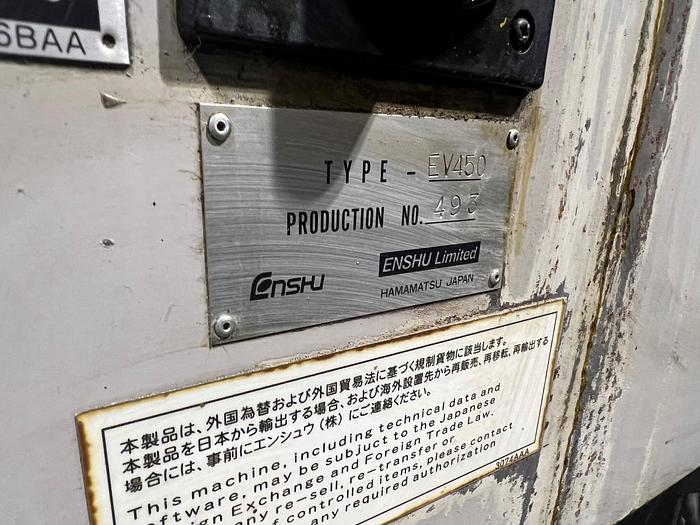

| Serial Number | 493 |
| Stock Number | VMC-ENU-719 |
| Number of Travels | 3 |
| X- Axis | 22 INCHES |
| Y-Axis | 18.11 INCHES |
| Z Axis | 18.1 INCHES |
| Number of Pallets | 2 |
| Spindle | CAT 40 |
| Spindle Speed Range | 40-10,000 RPM |
| Distance from Top of Table to Spindle | 7.9”- 26” |
| Distance Front of Column to Spindle Center Line | 20.1” |
| Feed Rate (X/Y/Z) | 1,575 IPM |
| Automatic Tool Changer | 20 |
| Rapid Traverse (X/Y/Z) | 0.04-591 IPM |
| Acceleration (X/Y/Z-G) | 0.5G |
| Thrust (X/Y/Z) | (674/674/1100 lbs.) |
| Spindle Ramp Up Time | 1.6 Sec. |
| Tool change Time (Tool to Tool) | 1.0 Sec. |
| Tool Change Time (Chip to Chip) | 3.5 Sec. |
| Maximum Pallet Load | 550 lbs. |
| Pallet Change Time | 4.8 Sec. |
| Approximate Dimensions | 83”x 96” x 106” |
| Approximate Weight | 9,900 lbs. |
