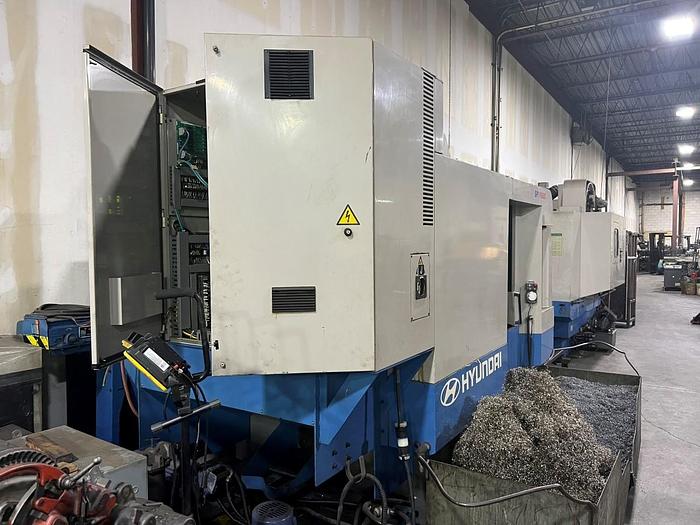

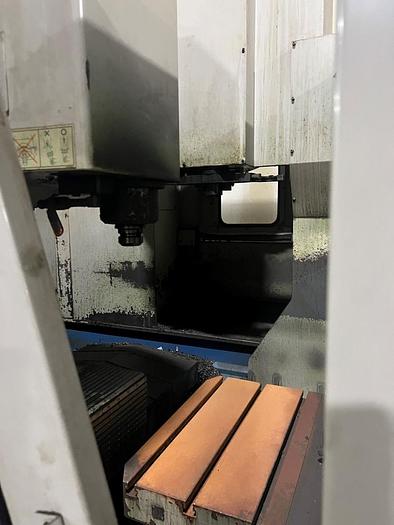

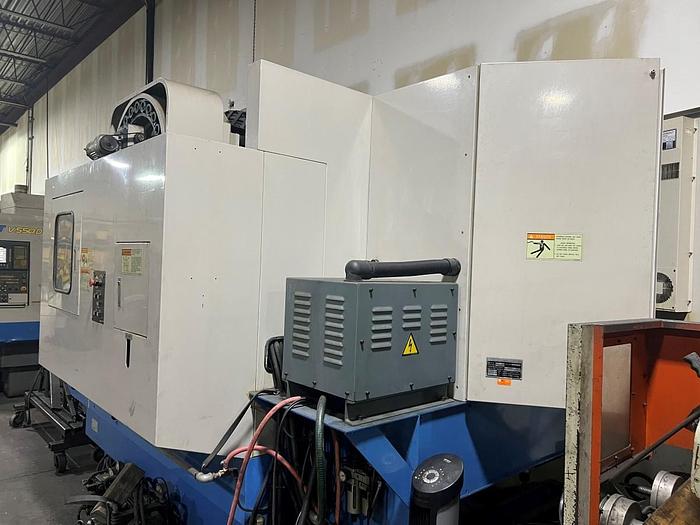

HYUNDAI SPT-V550D VMC
HYUNDAI SPT-V550D VMC
Available quantity: 1
Description
Discover the efficiency of the Hyundai SPT-V550D VMC, a robust addition to any machining operation. Thoroughly inspected by the experts at Gizmo Machine Tools Inc., this used VMC stands out with its Siemens 810D controller, known for precision and user-friendly operation. Enhance productivity with its integrated rotary-type pallet changer, designed to minimize downtime. The machine includes a durable hydraulic pump, a round type ATC for smooth tool changes, and an automatic lubrication system ensuring long-lasting performance. Equipped with a reliable coolant tank, it maintains optimal temperatures during extensive use. Invest in this Hyundai VMC for steadfast performance in your manufacturing tasks.
EQUIPPED WITH

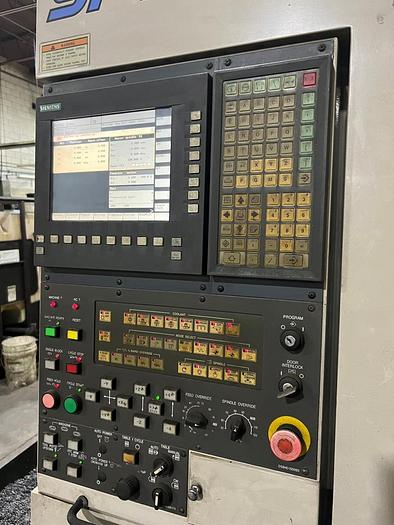

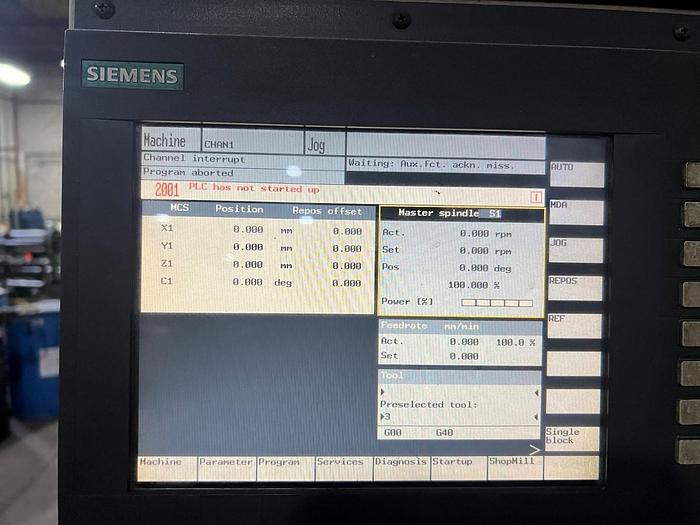

Controller Siemens 810D
Rotary Type Pallet Changer
Hydraulic Pump

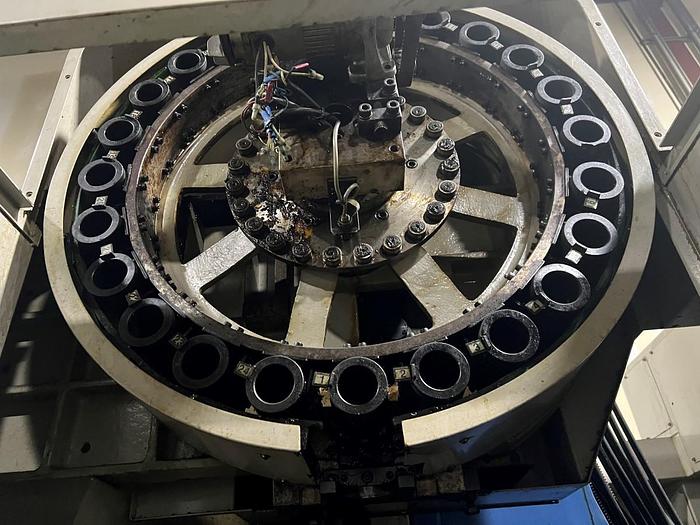

Round Type ATC
Automatic Lubrication System
Coolant Tank
Specifications
| Manufacturer | Hyundai |
| Model | SPT-V550D |
| Condition | Used |

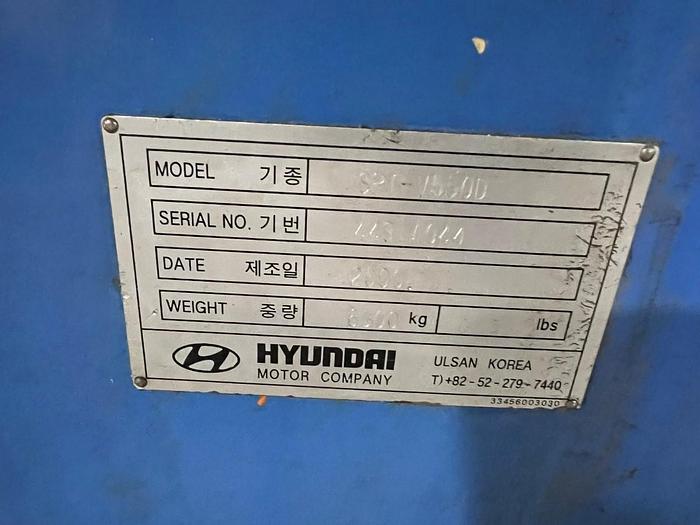

| Serial Number | 4491A004 |
| Stock Number | VMC-HYN-801 |
| X-axis Travel | 570 MM |
| Y-axis travel | 410 MM |
| Z-axis travel | 580 MM |
| Rapid Traverse (x/y/z) | 36/36/30 M/MIN |
| Distance from top side of table to the spindle | 197-777 MM |
| Max spindle speed | 10000 RPM |
| Spindle Motor Power | 18.5 KW |
| Spindle Taper | BT 40 |
| ATC MAGAZINE | 24 |
| Tool change Time (Tool to Tool) | 1.8 S |
| Tool Change Time (Chip to Chip) | 4.3 S |
| Table Dimensions | 2-650 x 410 MM |
| Machine Dimensions | 3100 x 2200 x 2750 MM |
| Approximate Machine Weight | 6000 KG |
