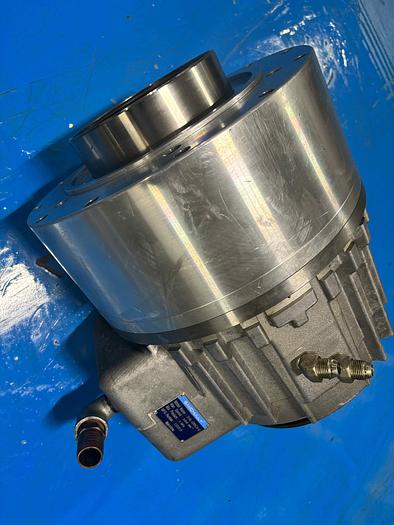

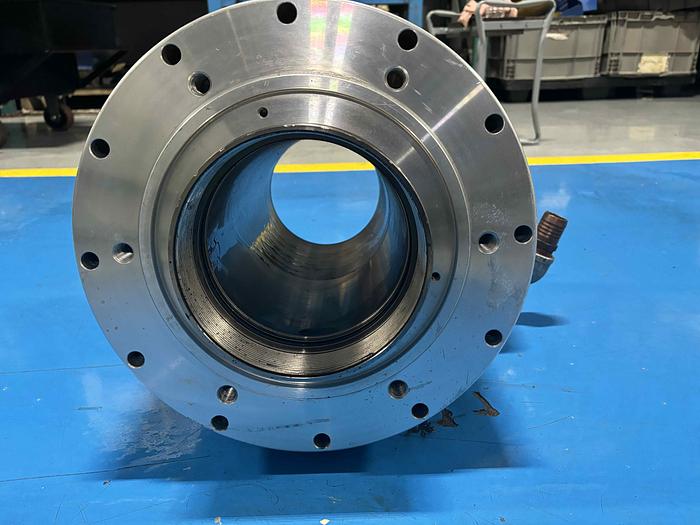

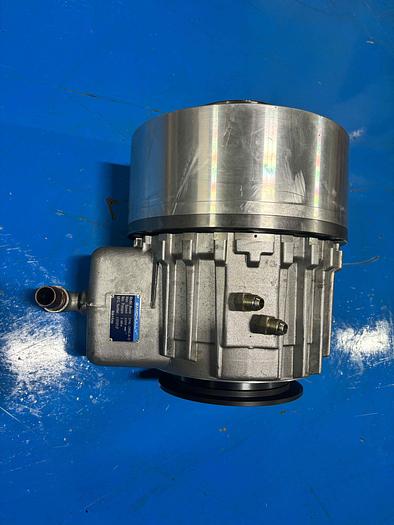

SAMCHULLY STANDARD OPEN CENTER LONG STROKE HYDRAULIC CYLINDER/ACTUATOR
SAMCHULLY STANDARD OPEN CENTER LONG STROKE HYDRAULIC CYLINDER/ACTUATOR
Available quantity: 1
Specifications
| Manufacturer | Samchully |

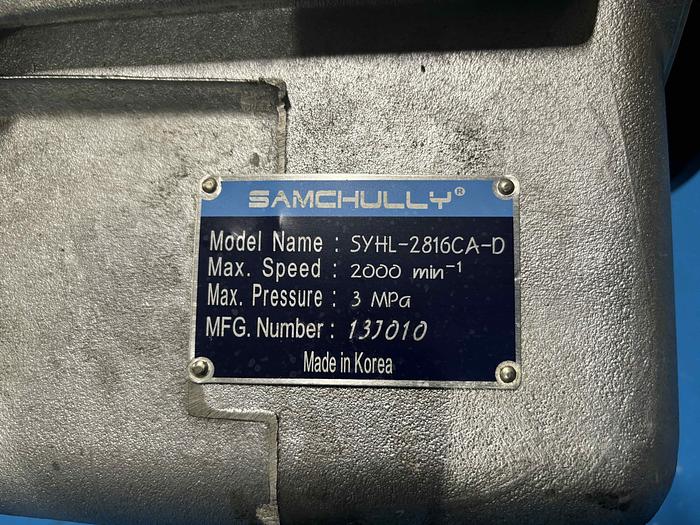

| Model | SYHL-2816CA-D |
| Condition | Used |
| Serial Number | 13J010 |
| Stock Number | ROT-SAM-51 |
| AVAILABLE ID | 166.5 MM |
| PISTON DIA. | 280 MM |
| PISTON STROKE | 51 MM |
| PISTON SURFACE AREA (PUSH) | 377 CM SQU |
| PISTON SURFACE AREA (PULL) | 332 CM SQU |
| PISTON FORCE (PUSH) | 113 Kn |
| PISTON FORCE (PULL) | 100 Kn |
| MAX OPERATING PRESSURE | 3.3 MPa |
| MAX RPM | 2000 |
| MOMENT OF INERTIA | 3.31 N |
| WEIGHT | 101 KG |
| TOTAL LEAKAGE | 8.4 L |
