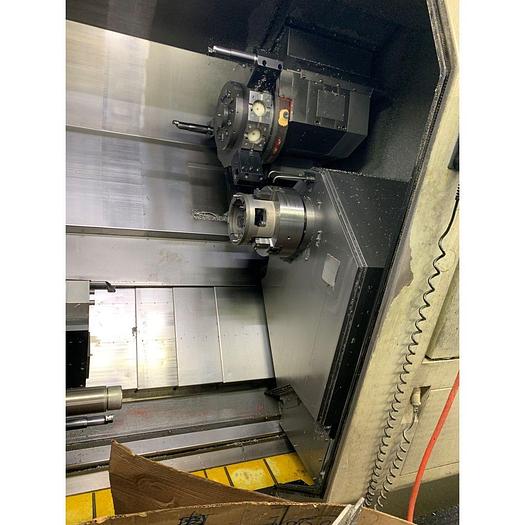

2008 Hyundai Kia SKT250TTSY Turning Center
Sold
2008 Hyundai Kia SKT250TTSY Turning Center
Description

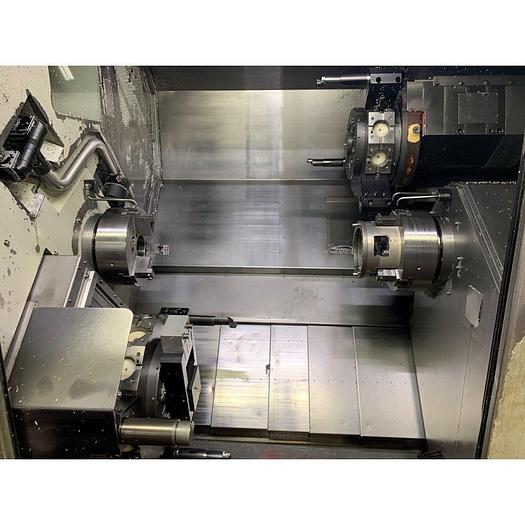

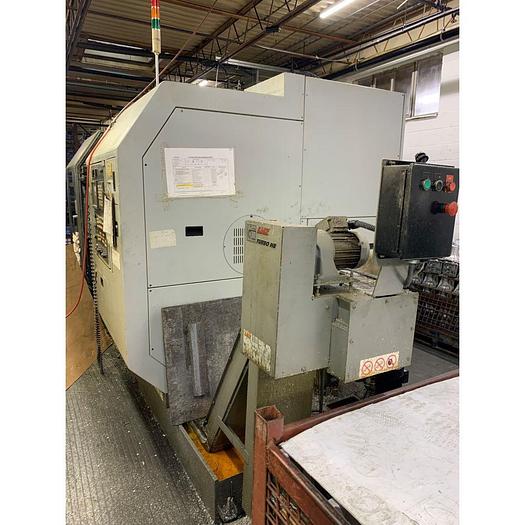

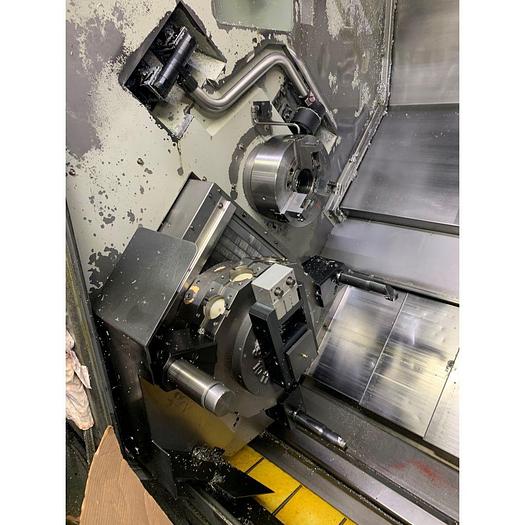

EQUIPPED WITH 10 IN 3-jaw chuck (main/sub) Remote jog wheel Rigid tapping Live milling C-axis both spindles Y-axis on upper turret Tool pre-setter Chip conveyor Coolant Tank All available manuals All specifications are subject to verification by purchasing entity.
Specifications
| Manufacturer | Hyundai Kia |
| Model | SKT250TTSY |
| Year | 2008 |
| Condition | Used |

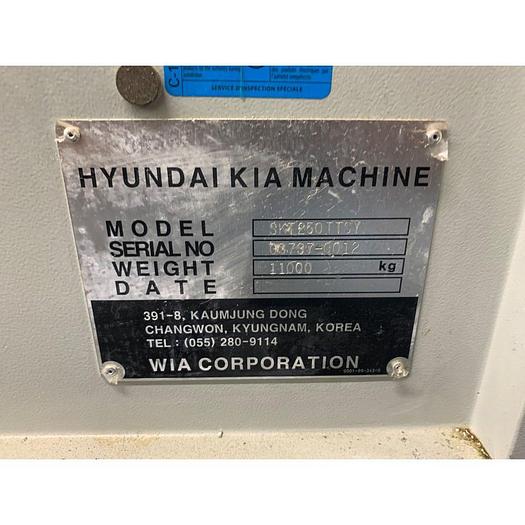

| Serial Number | G3737-0012 |
| Chuck size | 10 IN |
| Max diameter bar capacity | 3 IN |
| Max swing over bed / carriage | 30.7 IN / 27.5 IN |
| Max turning diameter (upper / lower) | 15.4 IN / 11.8 IN |
| Max machining length | 36.2 IN |
| Main motor | 33.5 / 25 HP |
| Tools | 12 / 12 |
| Speed | 4000 RPM |
| Spindle bore | 3.4 IN |
| Spindle nose | A2-8 |
| Spindle torque | 319.4 ft. lbs. |
| Rapid traverse rates(x & z / y) | 945 / 472 IPM |
| X-axis travel (upper / lower turret) | 10.6 IN / 36.2 IN |
| Z-axis travel (upper / lower turret) | 7.5 IN / 36.2 IN |
| Y-axis travel | +/- 2.4 IN |
| C-axis index (main & sub spindle) | .001 Degree |
| Sub spindle chuck size | 10 IN |
| Sub spindle bar capacity | 3 IN |
| Sub spindle motor | 15 / 10 HP |
| Sub spindle speed | 4000 RPM |
| Turret index (single step) | 0.2 Seconds |
| Machine dimensions (l x w x h) | 144.5 IN x 85.4 IN x 100.4 IN |
| Machine weight | 24,251 lbs. |

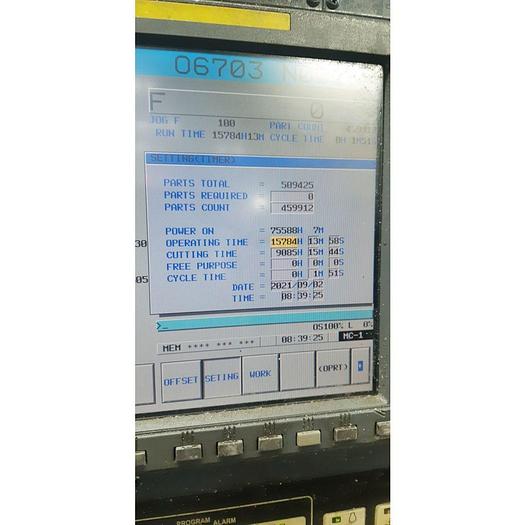

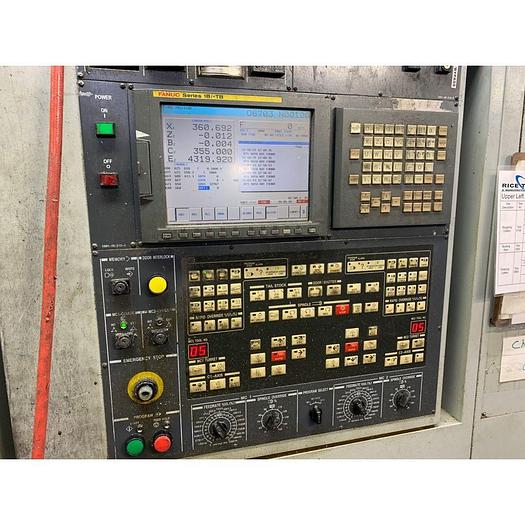

| Controller | Fanuc Series 18i-TB |
