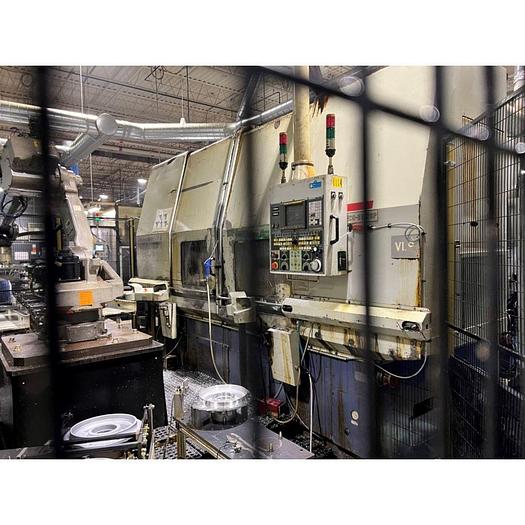

HWACHEON 2SP-V5 VERTICAL TURNING CENTER
HWACHEON 2SP-V5 VERTICAL TURNING CENTER
Description
EQUIPPED WITH Chip Conveyor Coolant Tank All specifications are subject to verification by purchasing entity.
Specifications
| Manufacturer | Hwacheon |
| Model | 2SP-V5 |
| Condition | Used |
| Chuck size | 15 IN |
| Max swing | 31.5 IN |
| Max spindle rpm | 20-2000 |
| X1 axis | 15.4 IN |
| X2 axis | 15.4 IN |
| Z1 axis | 19.3 IN |
| Z2 axis | 19.3 IN |
| Rapid traverse x-axis | 472 IPM |
| Rapid traverse z-axis | 630 IPM |
| Spindle nose | A2-11 |
| Bore | 3.5 IN |
| Second spindle rpm | 2500 RPM |
| Atc | 10+10 |
| Approx weight | 36,690 lbs |
| Controller | Fanuc Series 18-T |
