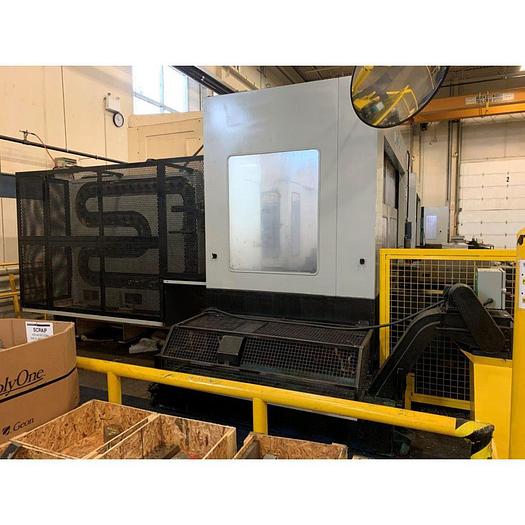

1998 Dahlih MCH-800 Horizontal Machining Center
Sold
1998 Dahlih MCH-800 Horizontal Machining Center
Description
EQUIPPED WITH
High Pressure Through Spindle Coolant

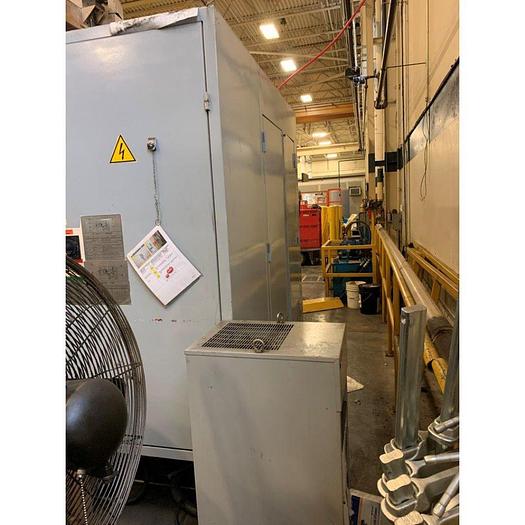

Spindle Cooling Chiller
Heat Exchanger

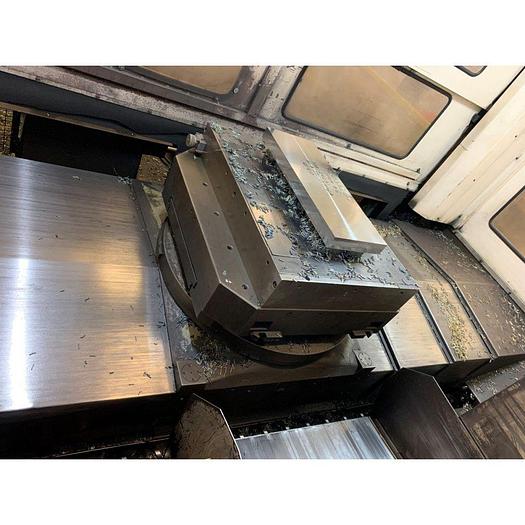

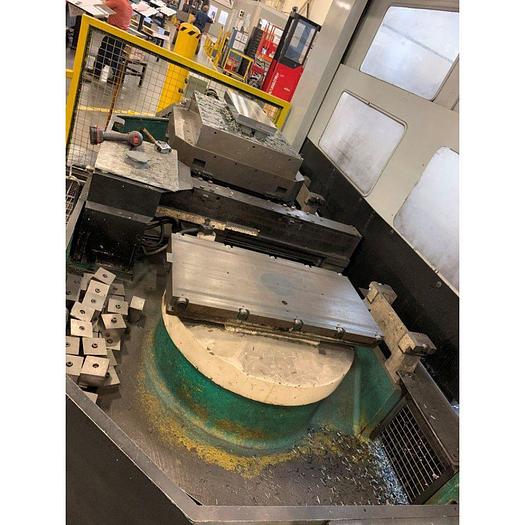

Automatic Pallet Changer
Flood Coolant
Coolant Tank
Two Chip Augers

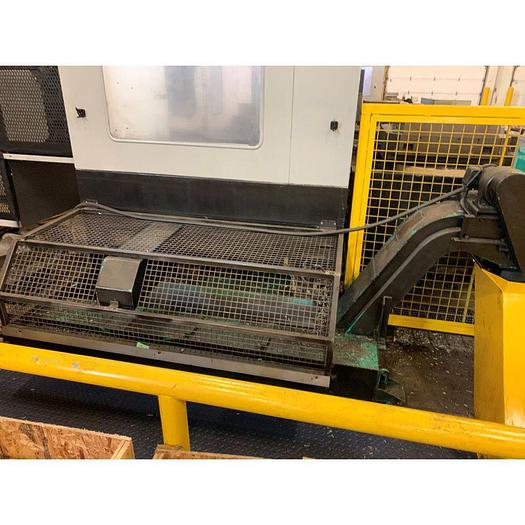

Chip Conveyor
All specifications are subject to verification by purchasing entity.
Specifications
| Manufacturer | Dahlih |
| Model | DL-MCH-800 |
| Year | 1998 |
| Condition | Used |
| Serial Number | 800024 |
| Pallet dimension | 800mm x 800 mm |
| Min indexing angle | 1 Degree |
| Max table load | 2,000 kg |
| Longitudinal travel (x) | 1350 mm |
| Vertical travel (y) | 1000 mm |
| Cross travel (z) | 1000 mm |
| Distance of spindle end to table center | 30 mm – 1300 mm |
| Distance of spindle center to table surface | 50 mm -1050 mm |

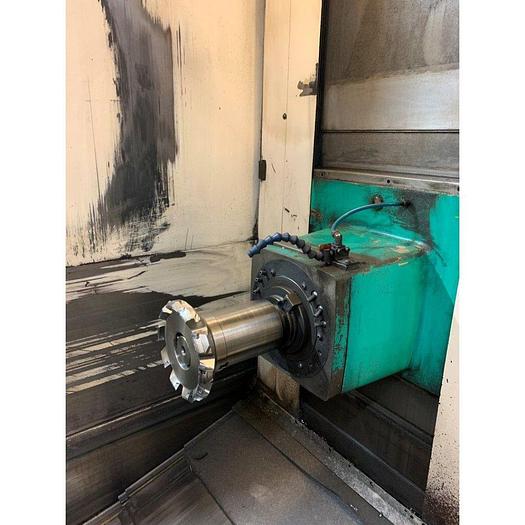

| Spindle nose | CAT-50 |
| Spindle speeds | 20-3500 RPM |
| Spindle speed range | Infinite Variable |
| Cutting feed | 1-1500 mm/min |
| Rapid traverse | 10 m/min |
| Min input increment | .001 mm |

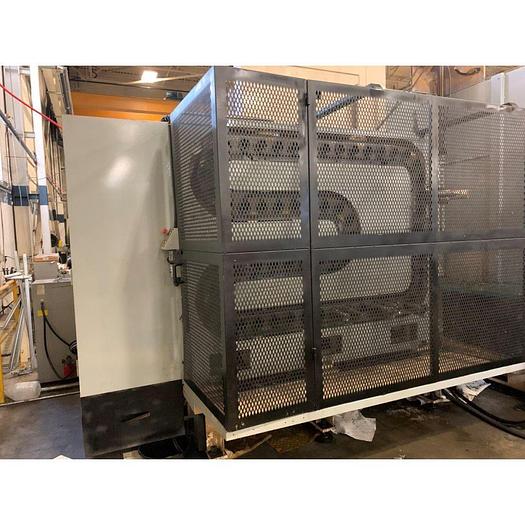

| Tool storage capacity | 60 |
| Max tool dia. x length | 110x500 mm |
| Max tool weight | 20 kg |
| Tool selection | Bi-Direction |
| Spindle motor (rated output for 30 mins) | FANUC Model 15S 18.5 kw (25 HP) |
| Drive motors (x,y,z axis) | FANUC Model 30S 3.3 kw (4.5 HP) |
| Floor space | 7200 mm x 4800 mm |
| Machine weight | 23,800 kg |

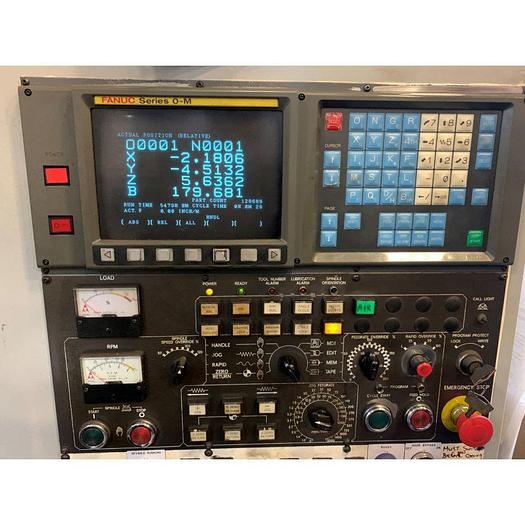

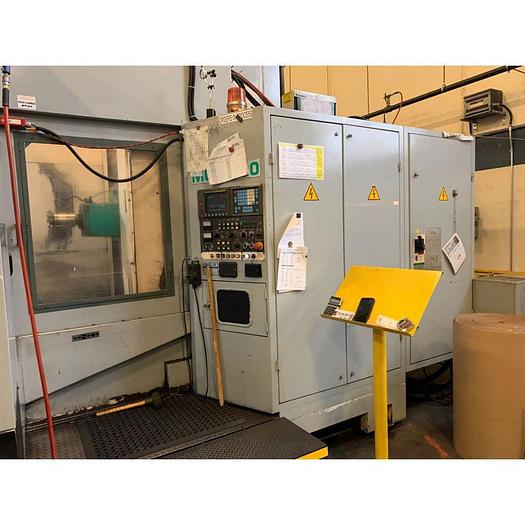

| Controller | Fanuc Series O-M |
