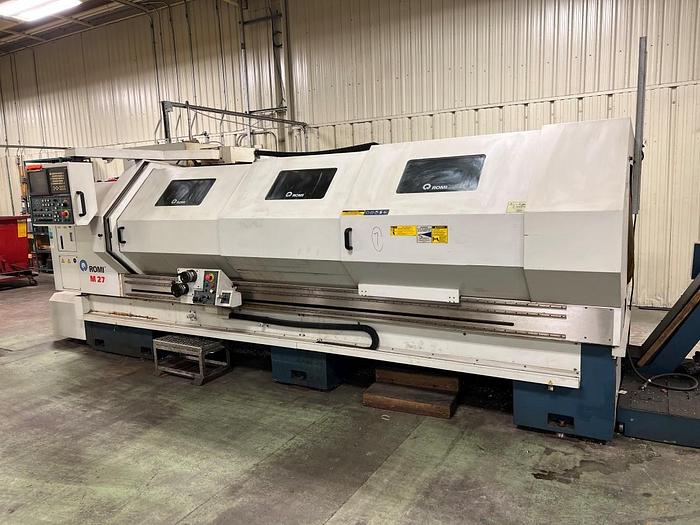

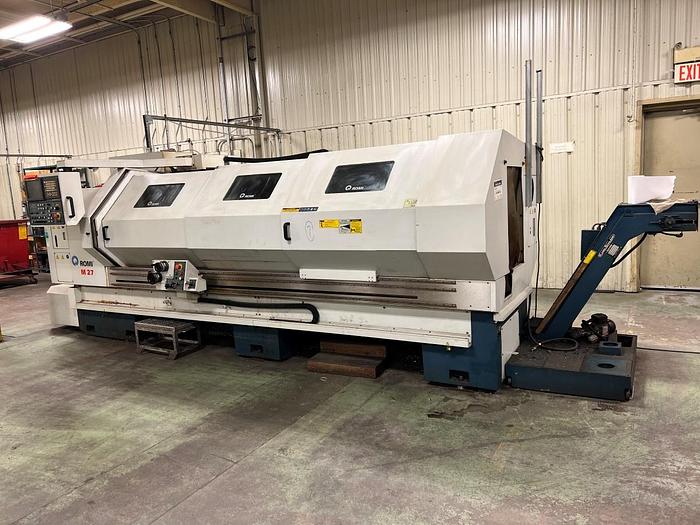

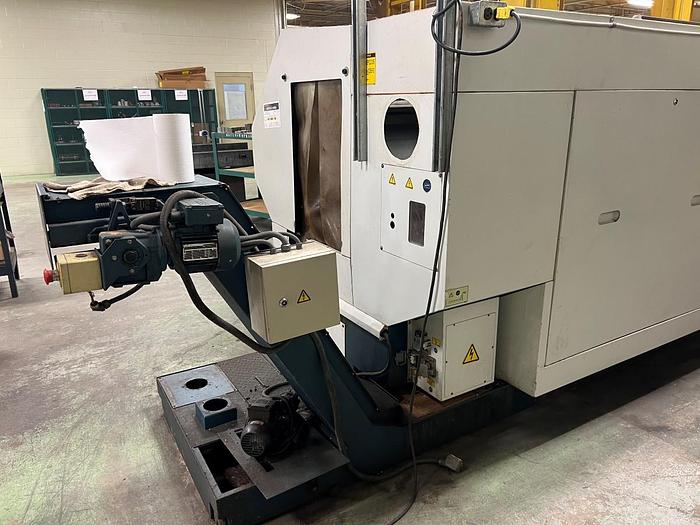

2009 Romi M27
Sold
2009 Romi M27
Available quantity:1
Description

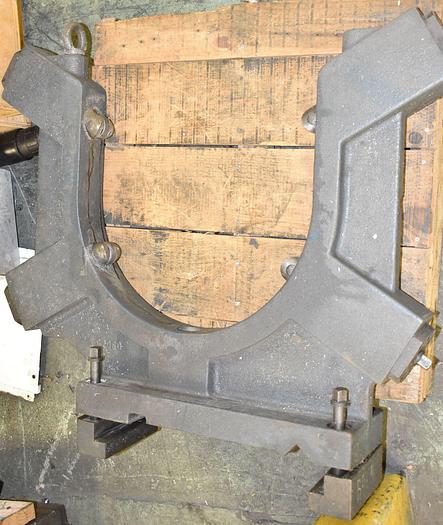

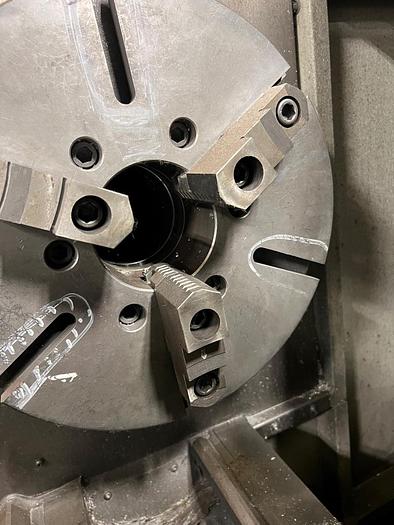

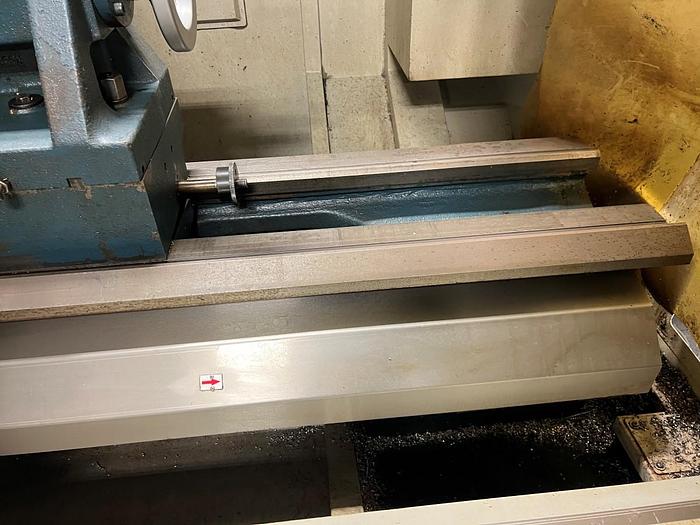

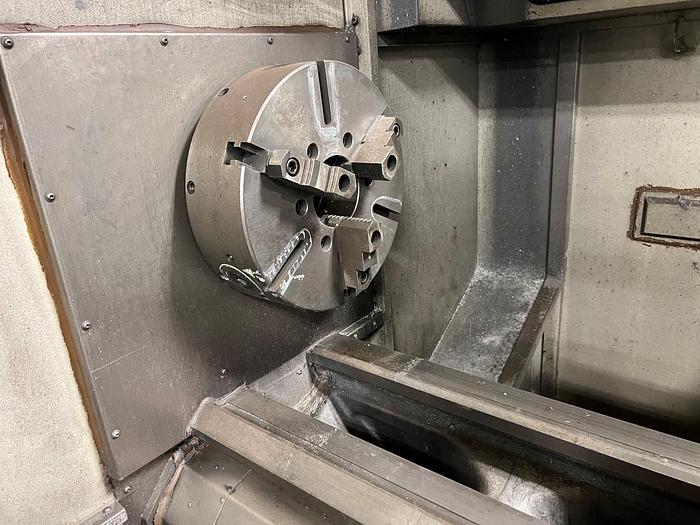

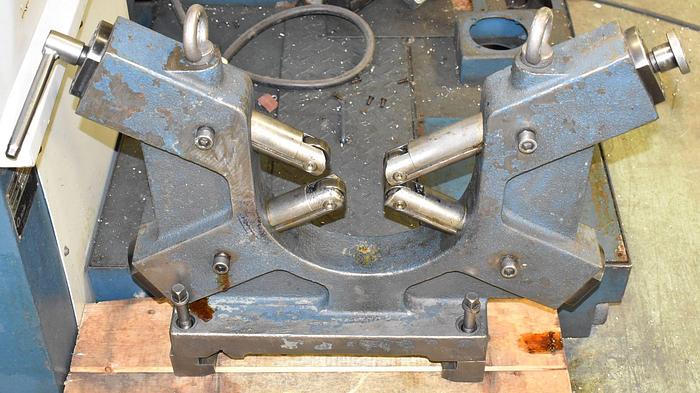

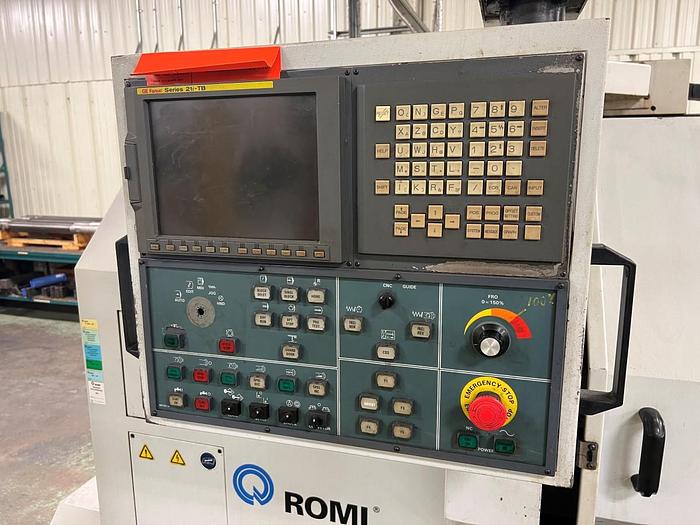

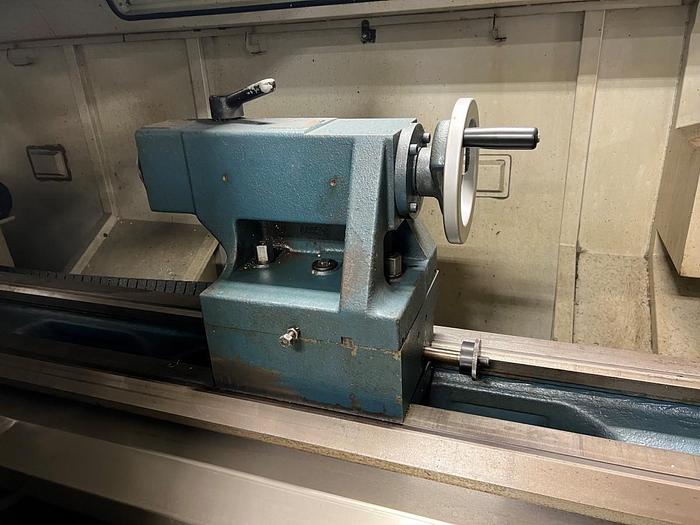

EQUIPPED WITH Fanuc 21i-T CNC Control with Manual Guidance G-Code and Teach Modes (2) MPG Handwheels for Manual Operation 16” 3-Jaw Chuck Tailstock with Manual Quill Steady Rest Chip Conveyor Coolant Pump and Tank
Specifications
| Manufacturer | Romi |
| Model | M27 |
| Year | 2009 |
| Condition | Used |

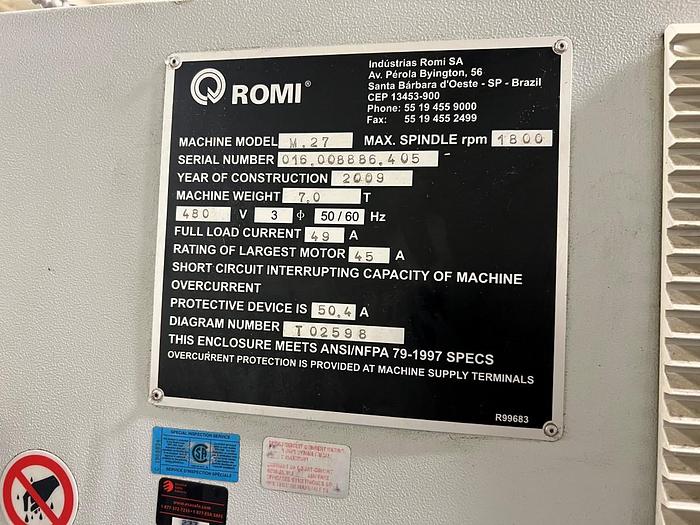

| Serial Number | 016.008886.405 |
| Stock Number | LTH-ROM-731 |
| Controller | GE FANUC SERIES 21I-TB |
| X axis (cross travel) | 14.2” |
| Z axis (longitudinal travel) | 120” |
| Max. swing over bed | 27” |
| Max. swing over carriage | 16.93” |
| Chuck size | 16” |
| Max. tailstock position | 123” |
| Max, distance between center | 120” |
| Feed range (infinitely variable) | 1-394 IPM |
| Spindle nose | A2-11 |
| Spindle bore | 4.1" |
| Spindle speed range | 1800 RPM |
| Spindle horsepower | 30 HP |
| Tailstock center | #5MT |
| Electrics | 480V/3PH/50-60HZ |
| Approximate machine dimensions | 154" x 78" |
| Approximate machine height | 78" |
| Approximate machine weight | 18,000 LBS |
