NAKAMURA-TOME TW10 CNC TURNING CENTER
NAKAMURA-TOME TW10 CNC TURNING CENTER
Available quantity:1
Description

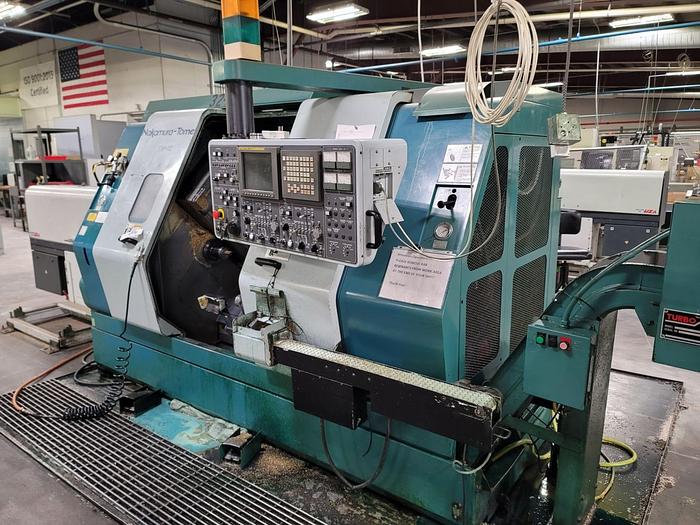

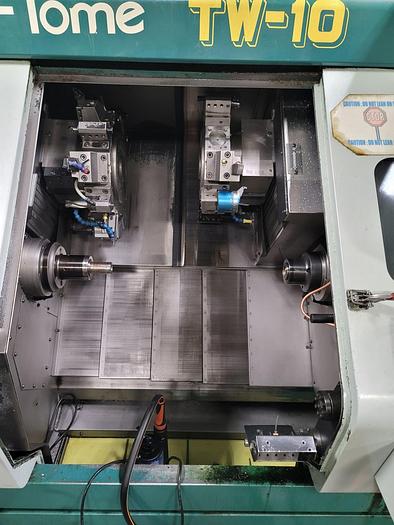

A pre-owned NAKAMURA-TOME CNC TURNING CENTER, expertly inspected and verified by Gizmo Machine Tools. This state-of-the-art machine boasts a Twin Turret / Twin Spindle configuration with C Axis for versatile operations. Powered by a reliable Fanuc Series 18i-T control system, it is equipped with an all 12 Live Tools Turret. Further enhancing its performance, it features ATS Collet Chucks on both spindles, a chip conveyor, parts conveyor, high-pressure coolant system, and an automatic lubrication system. The purchase includes a coolant tank, chip conveyor, 2 X Live Tools, tool holders, and all necessary manuals. A high-quality investment for precision machining.
EQUIPPED WITH

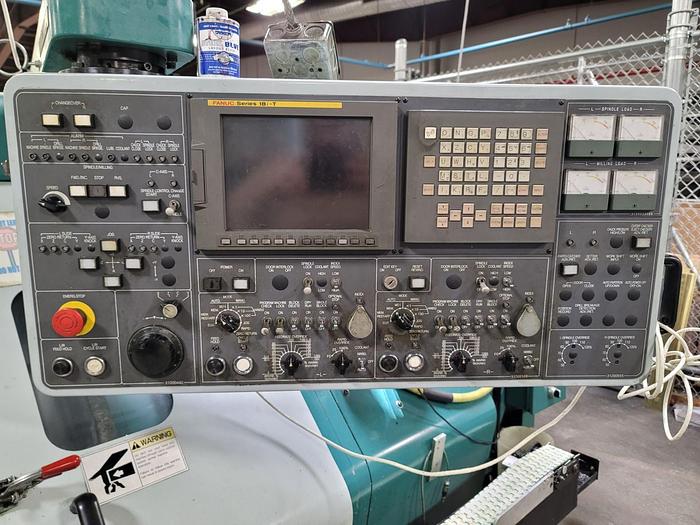

Fanuc Series 18i-T
Twin Turret / Twin Spindle with C Axis

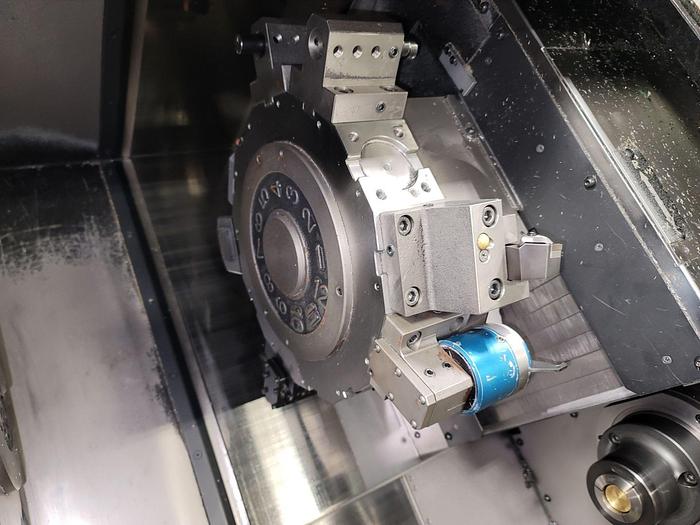

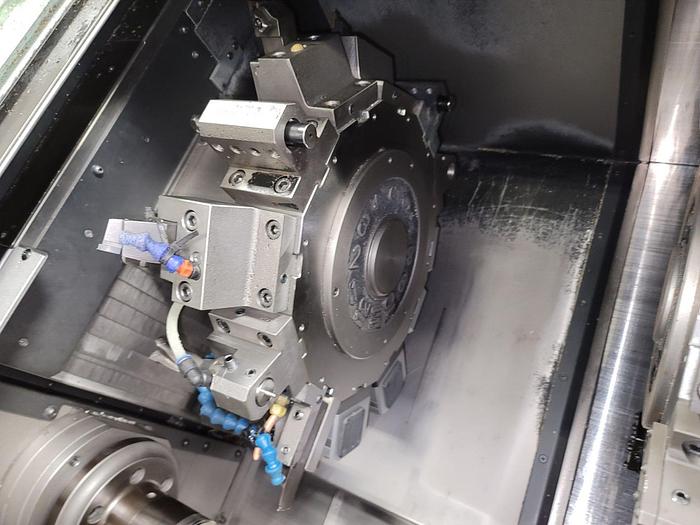

All 12 Live Tools Turret

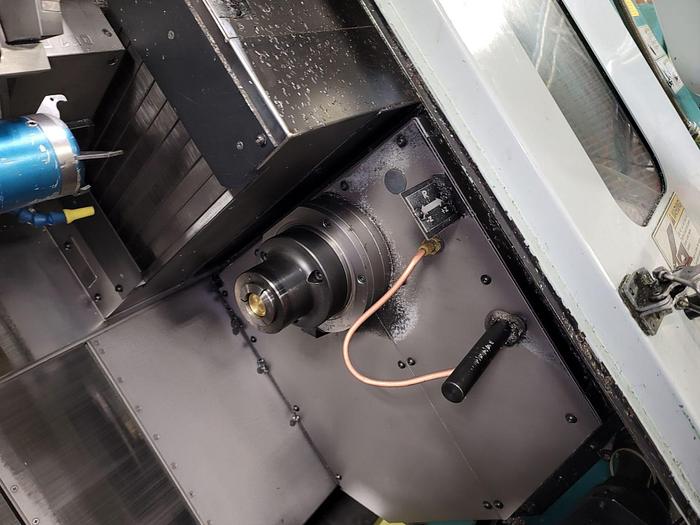

ATS Collet Chucks on Both Spindle

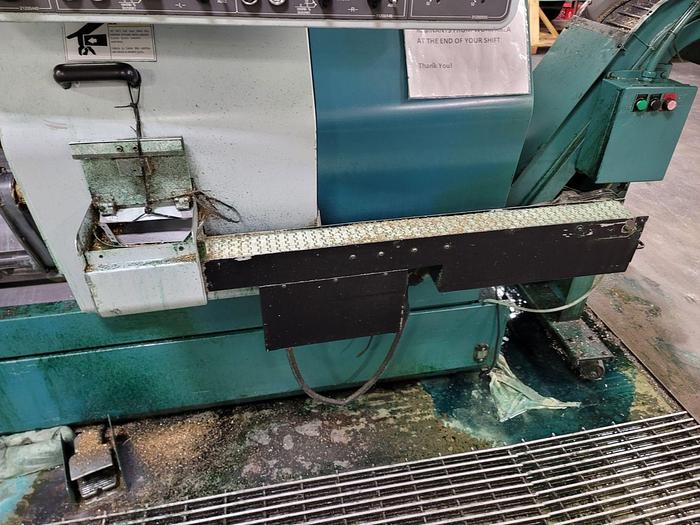

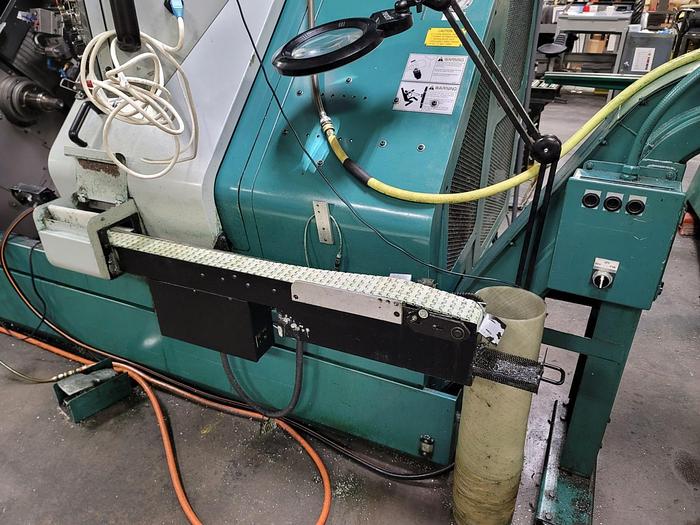

Parts Conveyor
Automatic Lubrication system
Coolant Tank

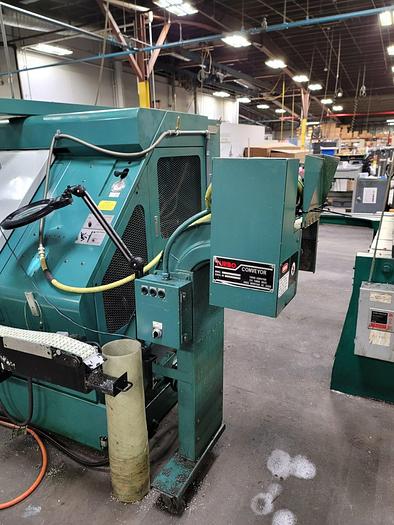

Comes with Chip Conveyor, 7 X Live Tools, Tool Holders and manuals.
Specifications
| Manufacturer | Nakamura Tome |
| Model | TW-10 |
| Condition | Used |

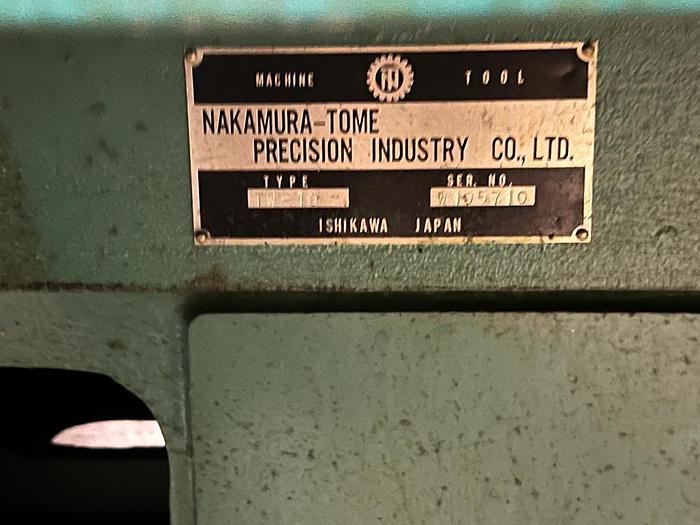

| Serial Number | W105710 |
| Stock Number | CTL-NKM-788 |
| Axis | 6 |
| X Axis (right/left) | 7.28 INCHES |
| Z Axis Left | 7.87 INCHES |
| Z Axis Right | 24.40 INCHES |
| C Axis Index | 1 Degree |
| Bar Capacity | 1.65 INCHES |
| Power | 10 HP |
| Maximum RPM | 5500 |
| Turning Diameter | 8.26 INCHES |
| Swing | 8.27 INCHES |
| Machine Dimensions (L x W x H) | 130 X 90 X 95 INCHES |
| Machine Weight Approx. | 10582 lbs |
