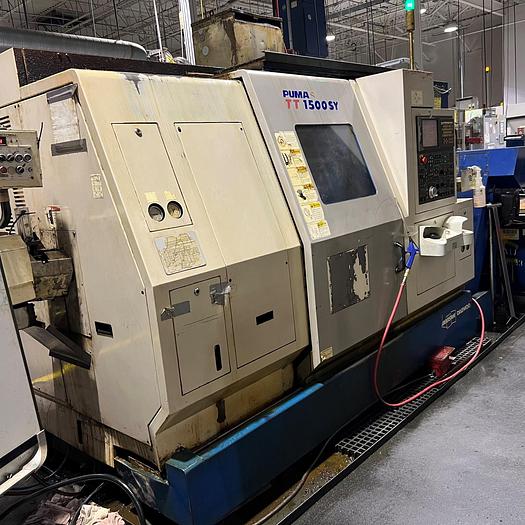

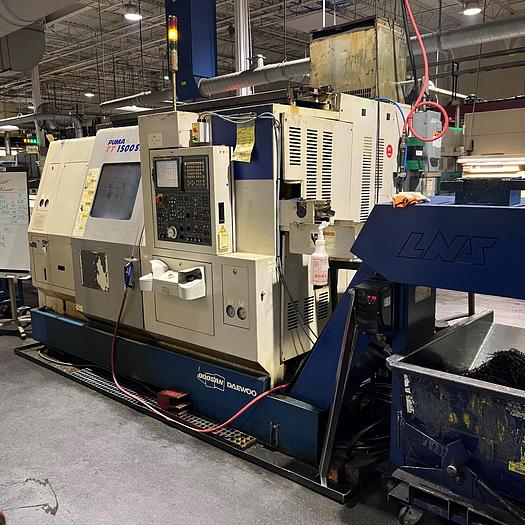

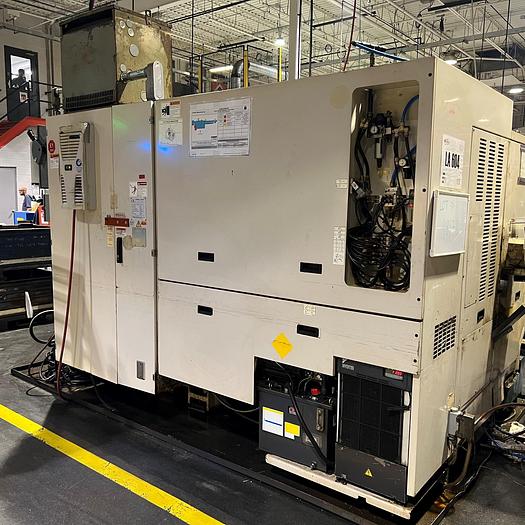

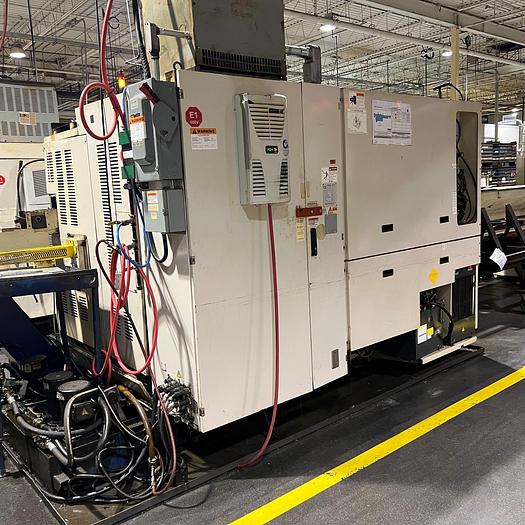

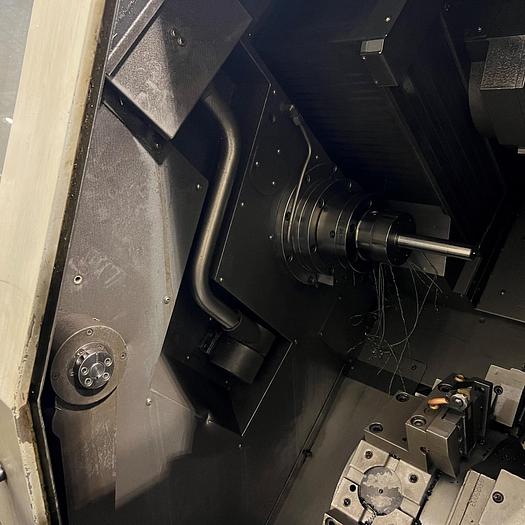

DOOSAN TT-1500SY TURNING CENTER

No longer available

DOOSAN TT-1500SY TURNING CENTER

Available quantity:1

Description

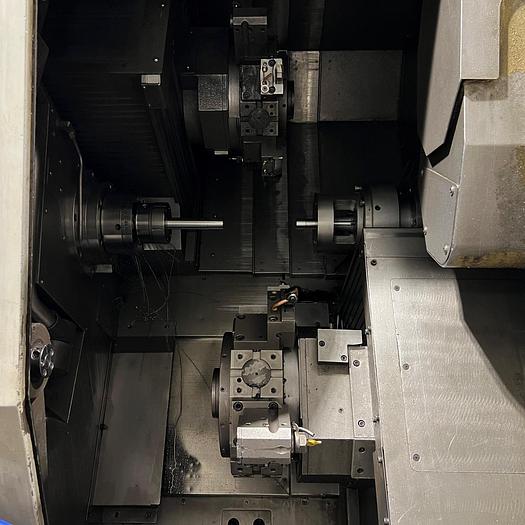

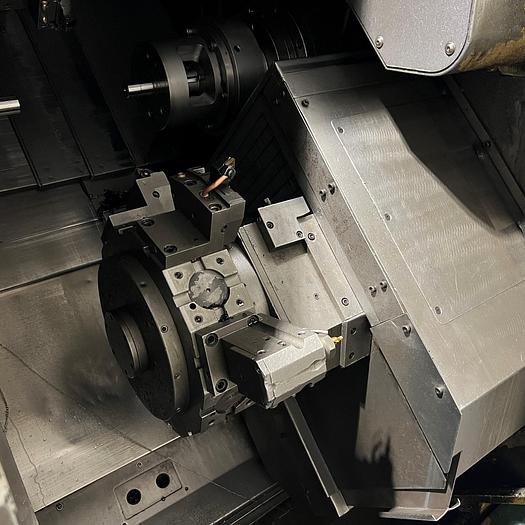

Elevate your manufacturing capabilities with the DOOSAN TT-1500SY Turning Center, a trusted machine that has undergone rigorous testing by Gizmo Machine Tools to ensure top-notch performance. This exceptional turning center comes equipped with reliable FANUC 18i TB CNC control. Two 24-station turrets offering 48 possible positions provide versatility for diverse operations. It boasts a Y-axis, chip conveyor, and tool setter for seamless operations. The parts catcher and conveyor ensure efficient part management. Choose reliability and performance with DOOSAN and Gizmo's seal of quality.


EQUIPPED WITH

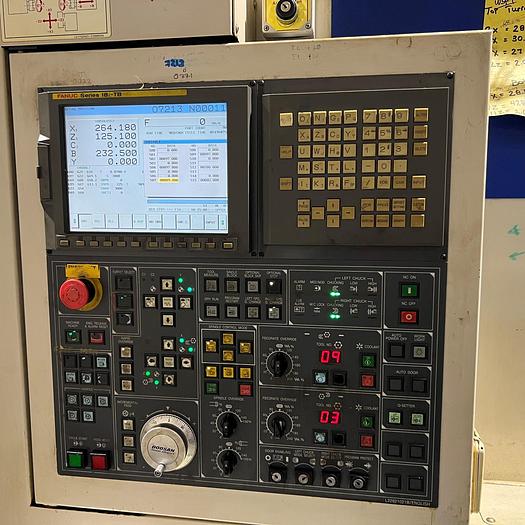

FANUC 18i TB CNC CONTROL,

Y-AXIS, B Axis, Full C Axis CHIP CONVEYOR, TOOL SETTER,

PARTS CATCHER,

PARTS CONVEYOR,

Show All

Specifications

ManufacturerDoosan
ModelTT1500SY
Year2006
ConditionUsed

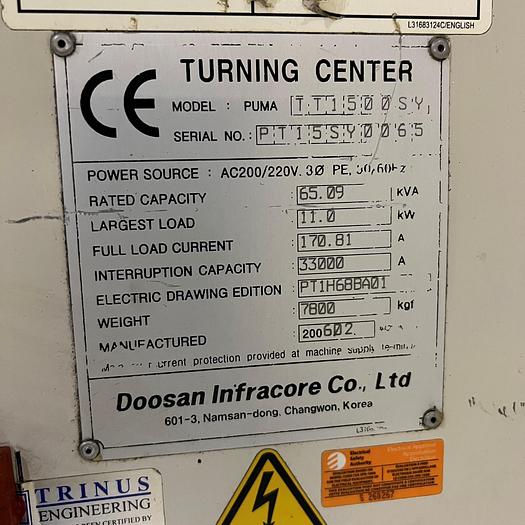

Serial NumberPT15SY0065
Stock NumberLTH-DOO-659

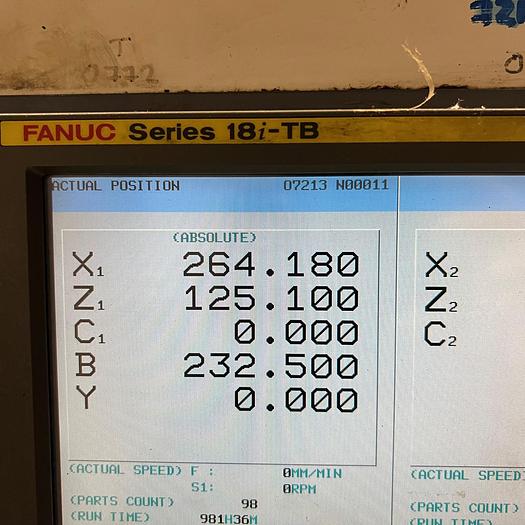

ControllerFanuc Series 18i-TB
Number of Axis6
BAR CAPACITY2.008 INCHES
RPM6000
Turning Diameter9.055 INCHES
MACHINING LENGTH4.724 INCHES
MAXIMUM TURNING DIAMETER9.05 INCHES
Maximum Machining Length 20.14 INCHES
Bar capacity (L/R)2 INCHES
LEFT SPINDLE20HP 6,000 RPM
RIGHT SPINDLE20HP 6,000 RPM
Left / right spindleFULL C AXIS
X1 axis travel6.5 INCHES
Z1 axis travel18.5 INCHES
X2 axis travel7.48 INCHES
Z2 axis travel19.29 INCHES
Rapid ratesX / Z 787IPM / 1,575IPM
Upper turretY AXIS + / – 1.96 INCHES
Driven tool motors7.5HP 5,000 RPM
Weight16,534 LBS
Number of Turret2
Number of stations12
Y1 Axis5.89 INCHES
