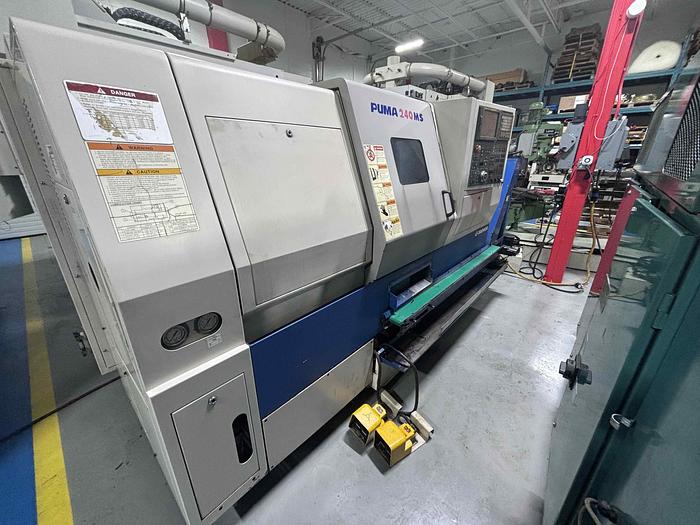

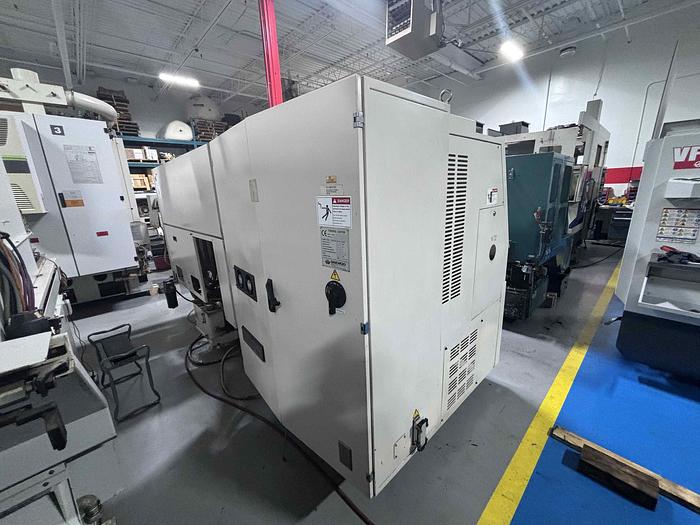

DAEWOO PUMA 240 MSB WITH SUB SPINDLE AND MILLING
DAEWOO PUMA 240 MSB WITH SUB SPINDLE AND MILLING
Available quantity: 1
Description
Equipped with:

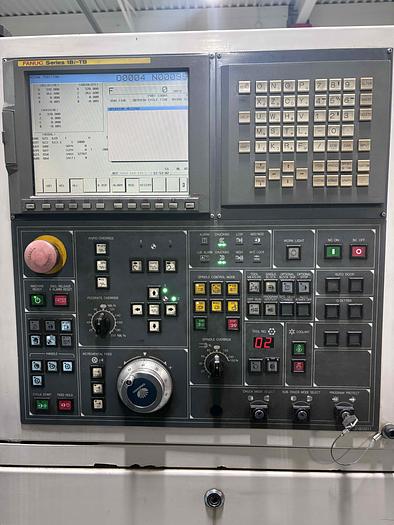

Controller : FANUC 18i-TB
TOOLSETTER -
ATS COLLET CLOSER ON SUBSPINDLE
PARTS CATCHER,
PARTS CONVEYOR

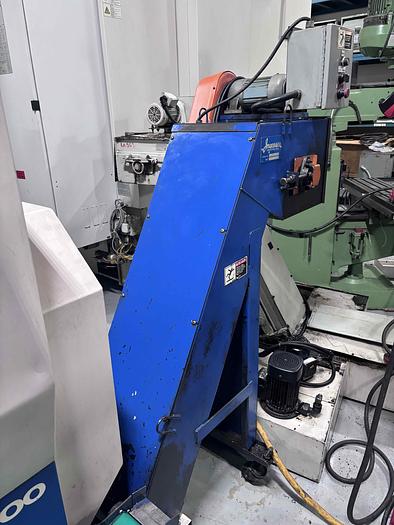

Chip conveyor
Tool Eye
Specifications
| Manufacturer | Daewoo |
| Model | PUMA 240 MSB |
| Year | 2003 |
| Condition | Used |
| Serial Number | 24MS0284 |
| Stock Number | TC-DWO-819 |
| Max Diameter Bar Capacity | 2.5 INCHES |
| Max Swing Over Bed / Carriage | 21.7/15.4 INCHES |
| Max Turning Diameter | 11.4 INCHES |
| Max Turning Length | 20.2 INCHES |
| Distance Between Spindles | 32.3 INCHES |
| Main Motor | 25 / 20 HP AC |

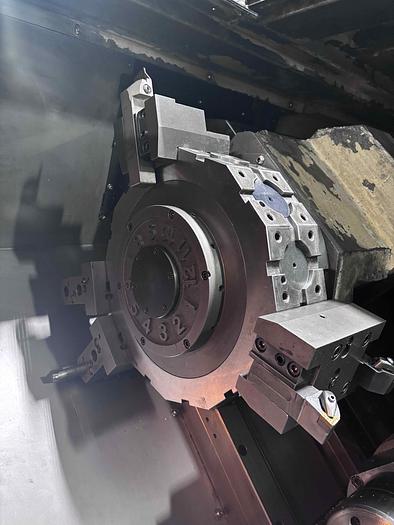

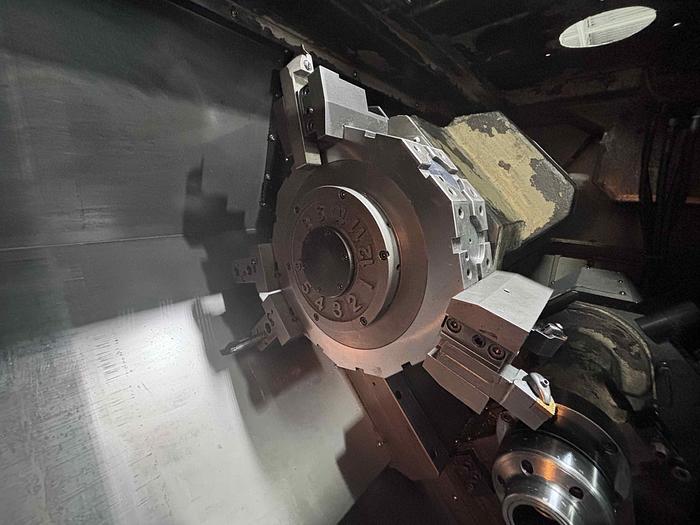

| Number of stations with live tools | 12 |
| Spindle Speed | 4500 RPM |
| Spindle Bore | 3 INCHES |
| Spindle Nose | A2-6 |
| Milling Motor | 7.4 HP |
| Milling Speed | 5000 RPM |

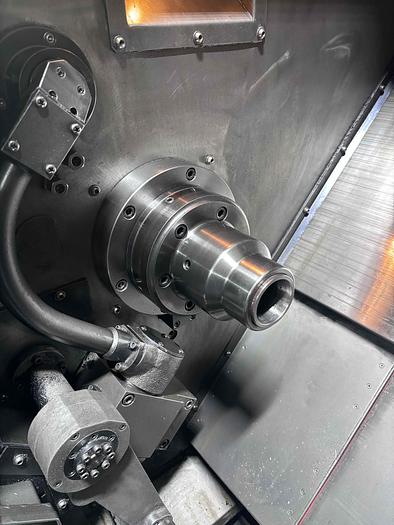

| Sub Spindle Motor | 7.5 HP |
| Sub Spindle Speed | 6000 RPM |
| Rapid Traverse Rates (X / Z) | 945 / 1200 IPM |
| X-Axis Travel | 8.1 INCHES |
| Z-axis travel | 22.8 INCHES |
| B-Axis Travel | 22.8 INCHES |
| C-Axis Index | 0.001 |
| Degrees Turret Index (Single Step) | 0.1 |
| Machine Dimensions (L x W) | 134 X 66 INCHES |
| MACHINE WEIGHT | 9820 LBS |
