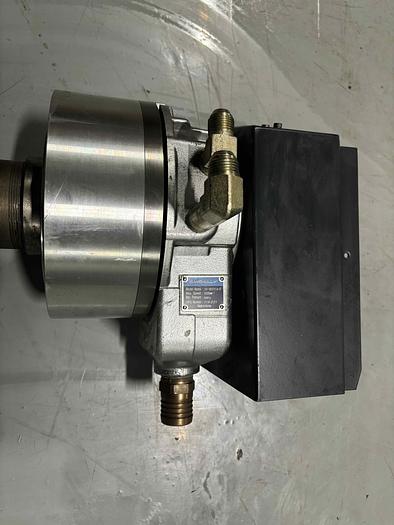

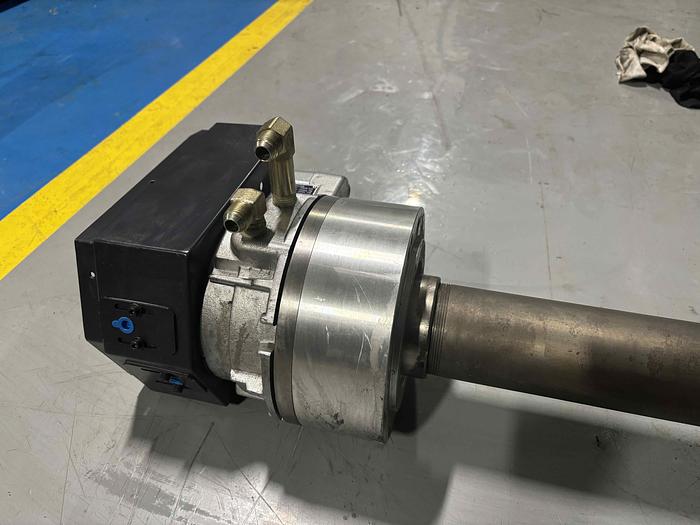

SAMCHULLY STANDARD MEGA BORE SHORT BODY OPEN CENTER HYDRAULIC CYLINDER/ACTUATOR
SAMCHULLY STANDARD MEGA BORE SHORT BODY OPEN CENTER HYDRAULIC CYLINDER/ACTUATOR
Available quantity: 1
Specifications

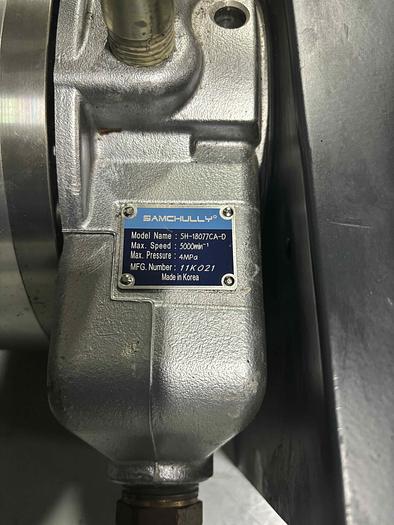

| Manufacturer | Samchully |
| Model | SH-18077CA-D |
| Condition | Used |
| Serial Number | 11K021 |
| Stock Number | ROT-SAM-46 |
| AVAILABLE ID | 77 mm |
| PISTON DIA. | 185 mm |
| PISTON STROKE | 25 cm squ |
| PISTON SURFACE AREA (PUSH) | 205.8 cm squ |
| PISTON SURFACE AREA (PULL) | 191 cm squ |
| PISTON FORCE (PUSH) | 75.3 Kn |
| PISTON FORCE (PULL) | 69.6 Kn |
| MAX OPERATING PRESSURE | 4 MPa |
| MAX RPM | 5000 |
| MOMENT OF INERTIA | 0.084 kg.m sq |
| WEIGHT | 18 KG |
| TOTAL LEAKAGE | 4.2 L |
