HAAS ST-20Y 2019
HAAS ST-20Y 2019
Available quantity:1
Description
EQUIPPED WITH
1GB memory
Automatic tool presetter
Auto door
BMT6590 degree toolholder
BMT5 straight tool holder
BMT option
Chip tray filter kit
Enclosure exhaust
ETHERNET interface
Haas connect
High-intensity lighting
High-pressure coolant system 1000psi

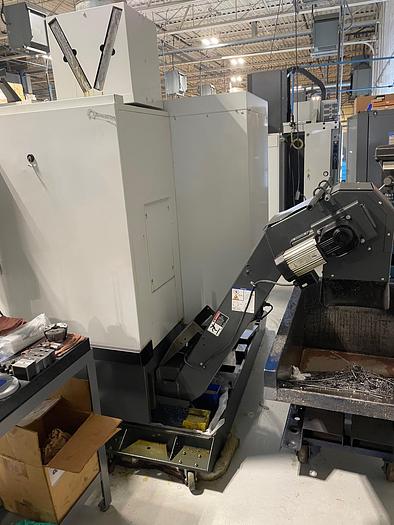

Belt-type chip conveyor
Live tooling option
Parts catcher
Programmable tailstock
Remote jog handle
Rigid tapping
Spindle orientation
WIFI
Visual programming system
2019 HAAS ST-20Y Turning Center is equipped with a wide range of advanced features for high-precision and efficient machining. The machine includes 1GB of memory, an automatic tool presetter, and a high-pressure coolant system (1000 psi) for optimal cutting performance. Additional features like live tooling, programmable tailstock, Haas Connect, and Wi-Fi make this machine highly versatile and ideal for modern machining tasks.
Specifications
| Manufacturer | Haas Automation INC. |
| Model | ST-20Y |
| Year | 2019 |
| Condition | Used |
| X Axis | 213 mm |
| Y Axis | 51 mm |
| Z Axis | 572 mm |
| Chuck Size | 8.3 in |
| Max Part Swing | 21.0 in |
| Max Cutting Diameter (with BMT65 turret) | 11.75 in |
| Bar Capacity | 2.50 in |
| Rapids on X | 472 ipm |
| Rapids on Y | 472 ipm |
| Rapids on Z | 945 ipm |
| Spindle Nose | A2-6 |
| Max Rating | 20.0 hp |
| Max Speed | 4000 rpm |
| Max Torque | 150.0 ft-lbf @ 500 rpm |
| Spindle Bore ø | 3.50 in |
| Rapids (B-axis) | 400 ipm |
| Number of Tools | 12 Stations |
