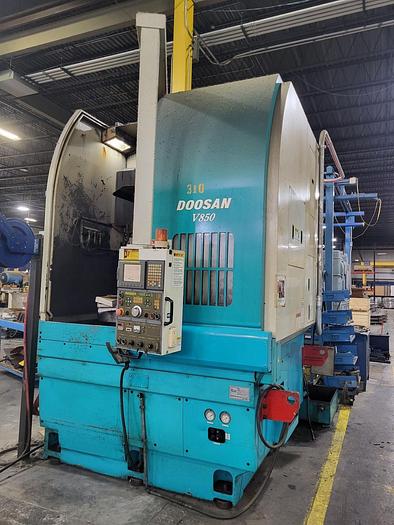

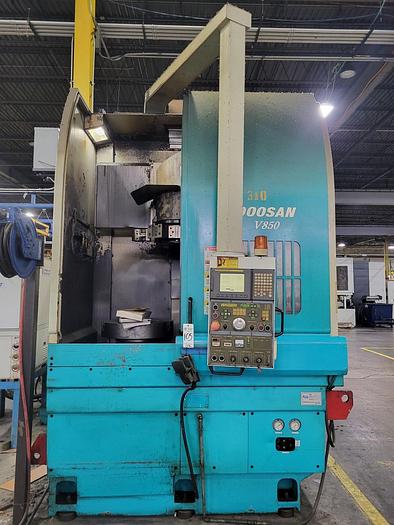

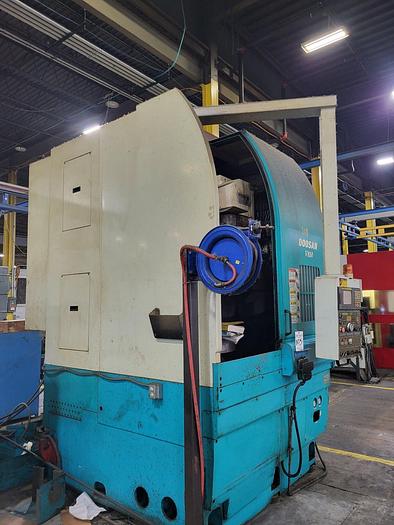

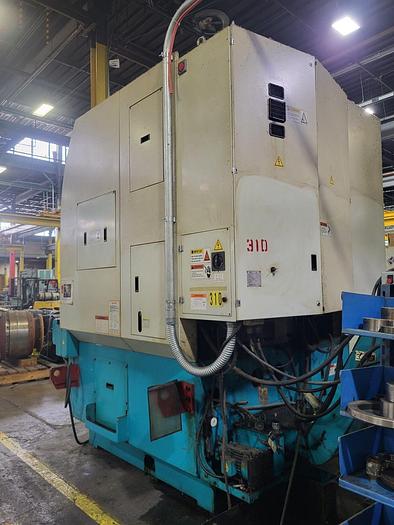

Doosan V850 Vertical Turning Lathe
Doosan V850 Vertical Turning Lathe
Available quantity:1
Description
EQUIPPED WITH:

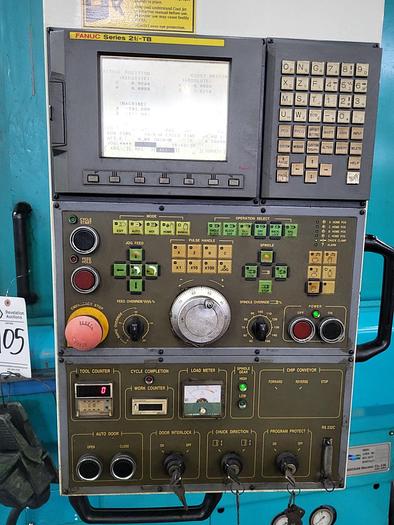

FANUC 21i-TB CNC CONTROL
RIGID BOXWAY CONSTRUCTION

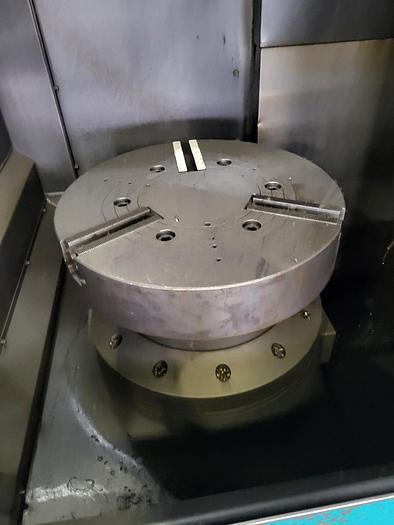

24 Inch Hydraulic Chuck

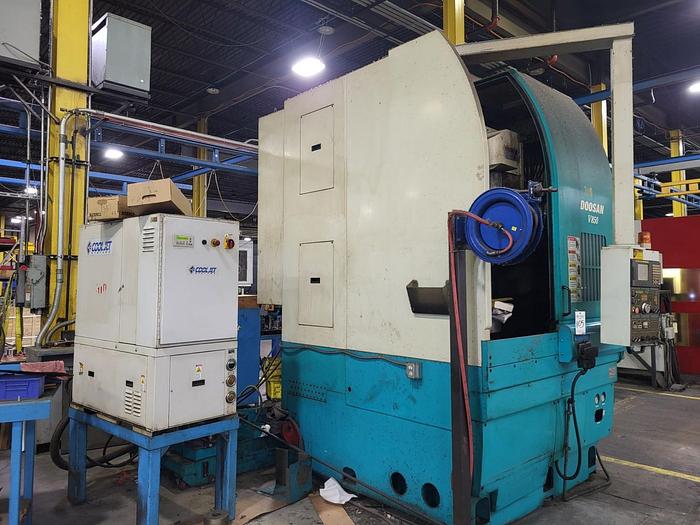

COOLANT TANK

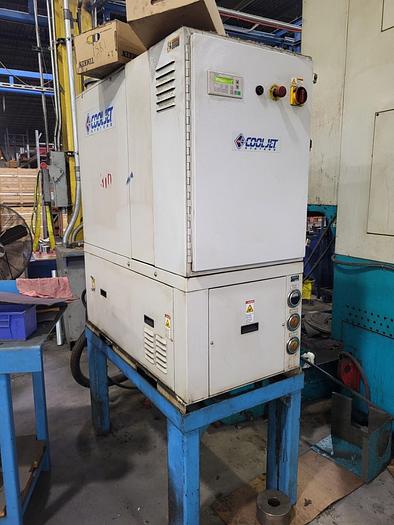

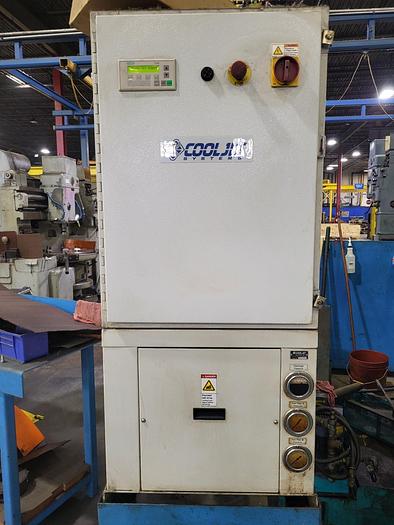

CHIP BLASTER

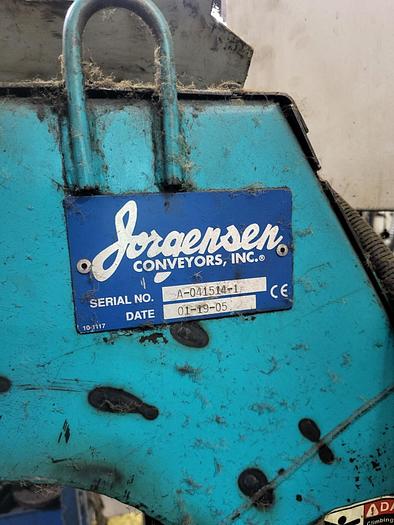

CHIP CONVEYOR

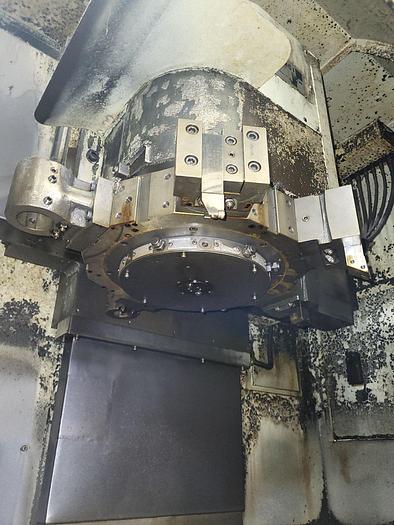

PICTURED TOOLING ON TURRET
AVAILABLE MANUALS
This Doosan V850 Vertical Turning Lathe is equipped with the FANUC 21i-TB CNC Control for superior precision and control in turning operations. Built with Rigid Boxway Construction, it offers enhanced stability and durability for heavy-duty tasks. The 24-Inch Hydraulic Chuck ensures strong and reliable workpiece clamping, while the Coolant Tank, Chip Blaster, and Chip Conveyor provide efficient cooling and chip management. Complete with pictured tooling on the turret and available manuals, this lathe is fully equipped and ready for immediate use in your machining processes.
Specifications
| Manufacturer | Doosan |
| Model | V850 |
| Year | 2004 |
| Condition | Used |

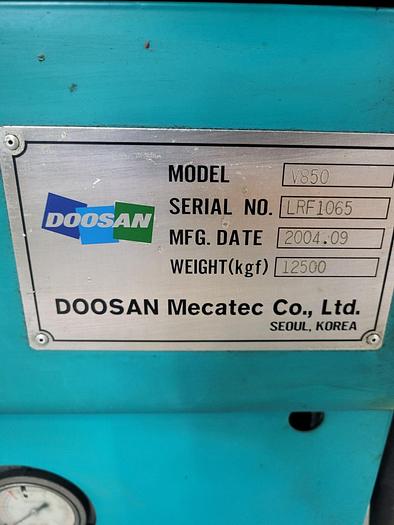

| Serial Number | LRF1065 |
| Stock Number | VTL-DSN-859 |
| CHUCK DIAMETER | 24.0 Inches |
| MAX SWING | 39.46 Inches |
| MAX CUTTING HEIGHT | 33.3 Inches |
| MAX CUTTING DIAMETER | 33.46 Inches |
| SPINDLE SPEEDS | 5-1800 RPM |
| NUMBER OF GEAR RANGES | 2 MAX |
| TABLE WEIGHT CAPACITY | 1475 LBS. |
| MAX TORQUE | 1,796 FT/LBS. |
| SPINDLE NOSE | A2-11 |
| SPINDLE BEARING DIAMETER | 7.87 Inches |
| TABLE HORSEPOWER | 50/40 HP AC |
| X-AXIS TRAVEL | 18.50 Inches |
| Z-AXIS TRAVEL | 33.46 Inches |
| RAPID TABLE TRAVERSE | 630/630 IPM |
| Turret | 12 Station |
| DIMENSION | 120.86 x 167.91 x 139 Inches |
| Approximate weight | 12500 Kg |
