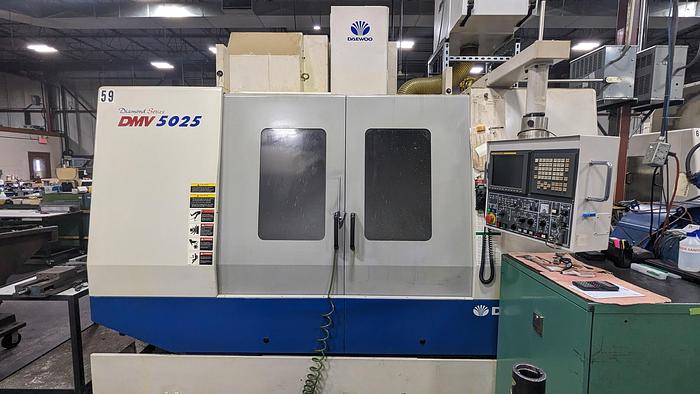

DMV -5025 Vertical Machining Center
DMV -5025 Vertical Machining Center
Available quantity:1
Description
Equipped With:

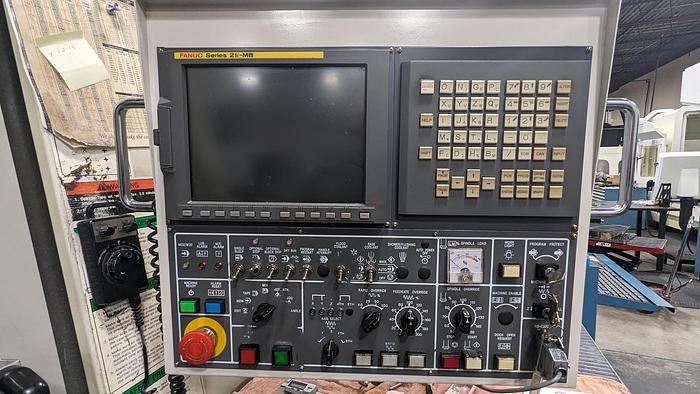

Fanuc 21i-MB CNC Control
Chip Conveyor

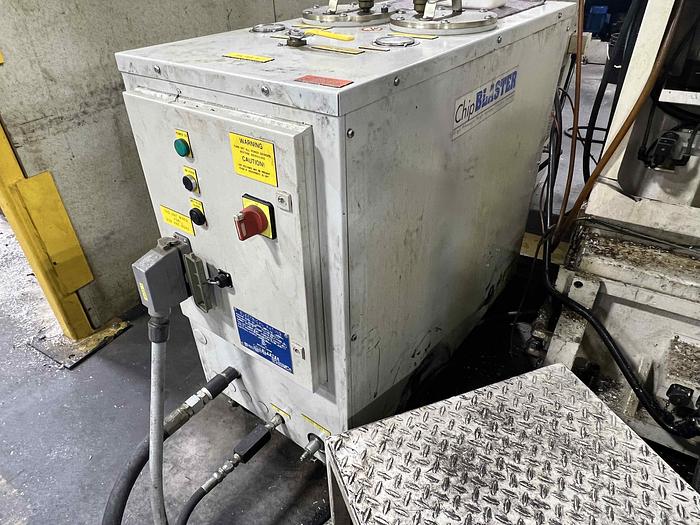

Chip blaster

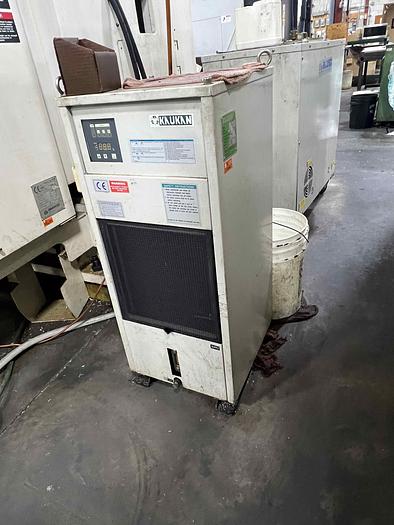

Spindle Chiller
Through Spindle Coolant
Coolant tank
Flood Coolant
DMV-5025 Vertical Machining Center is equipped with the reliable FANUC 21i-MB CNC Control for precise and efficient machining. It features a Chip Conveyor and Chip Blaster for efficient material removal and management. The machine is designed with a Spindle Chiller and Through-Spindle Coolant system to maintain optimal cutting temperatures, extending tool life and enhancing performance. Additionally, it includes a Coolant Tank and Flood Coolant system for continuous cooling during operations. Ideal for businesses seeking robust performance and cooling efficiency in their machining processes.
Specifications

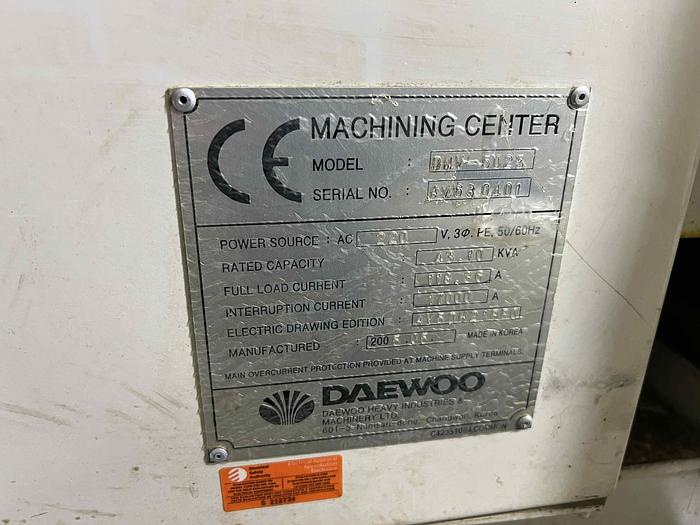

| Manufacturer | Doosan |
| Model | DMV- 5025 |
| Year | 2005 |
| Condition | Used |
| Serial Number | AV630401 |
| Stock Number | VMC-DWO-901 |
| X AXIS TRAVEL | 51.2 Inches |
| Y axis travel | 25.6 Inches |
| Z Axis | 24.6 Inches |

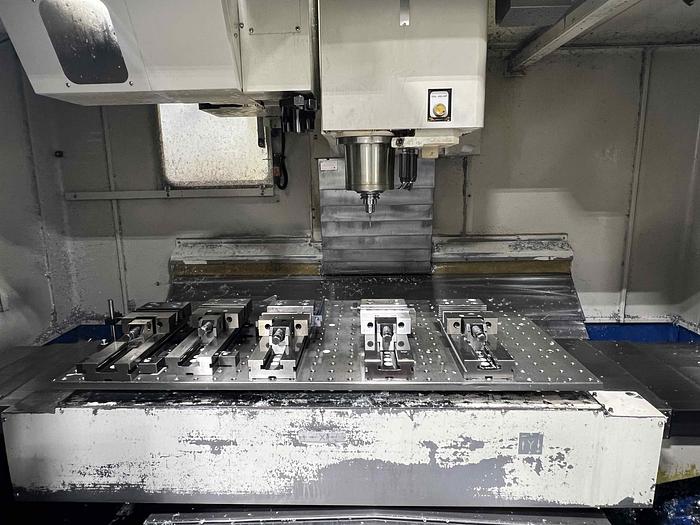

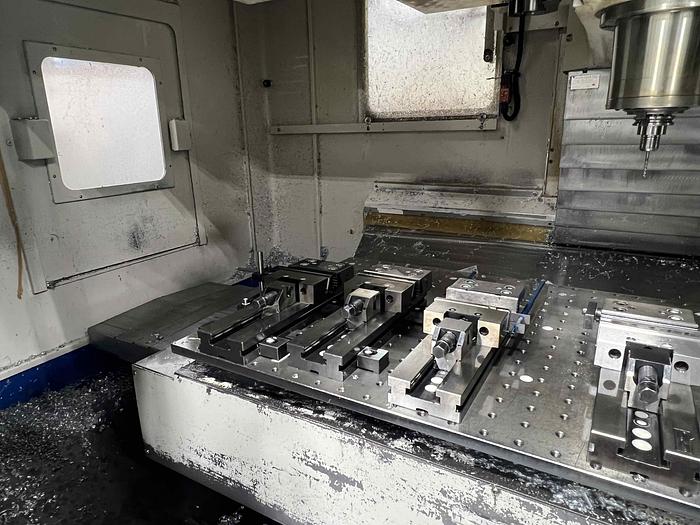

| Table Size | 25.6 x 55.1 Inches |
| Table Load | 2,640 lbs |
| Spindle Nose to Table | 5.9 – 30.5 Inches |
| Spindle Speed | 10000 RPM |
| Rapid Traverse (z) | 787 IPM |
| Rapid Traverse(x,y) | 945 IPM |
| Tool Magazine Capacity | 30 |
| Cutting Feed Rate | 0.04 - 315 IPM |
| Taper | Cat 40 |
| Dimensions | 129 x 111 x122 Inches |
| Weight | 17,000lb |
