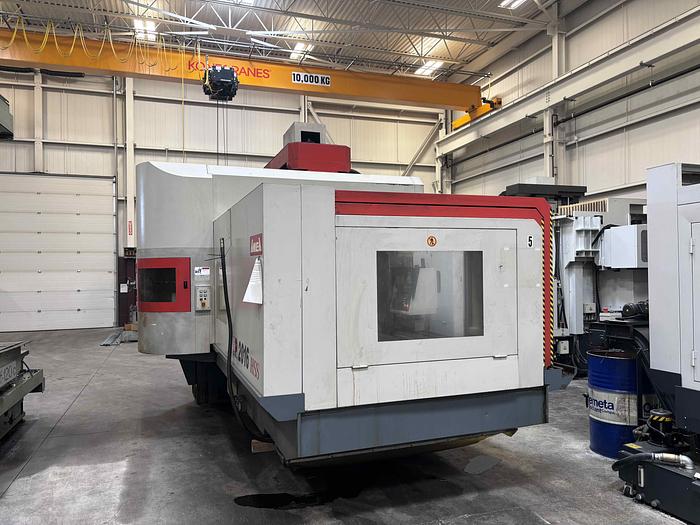

AWEA SP-2016 HSS Vertical Machining Center (Bridge Type)
AWEA SP-2016 HSS Vertical Machining Center (Bridge Type)
Description
Equipped With

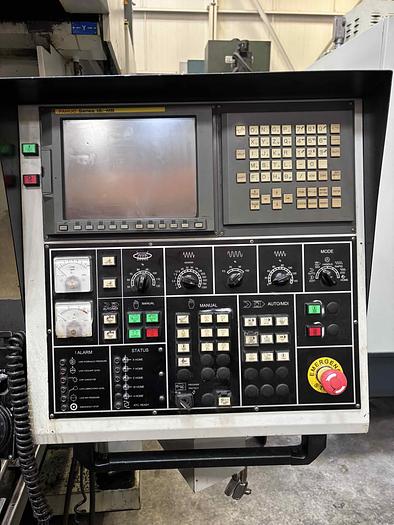

Controller: FANUC 18i-MB
Chip Conveyor
Spindle Chiller
Coolant Tank

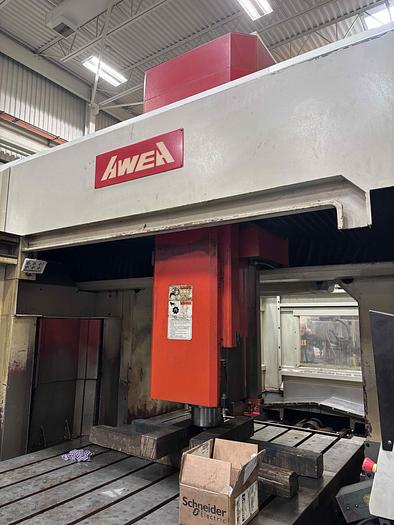

The AWEA SP-2016 HSS Vertical Machining Center (Bridge Type) is designed for precision and heavy-duty machining. Equipped with a FANUC 18i-MB controller, chip conveyor, spindle chiller, and coolant tank, it ensures efficient cooling and chip management for optimal performance. Ideal for complex, high-precision tasks, this bridge-type machine offers robust stability and advanced control for enhanced productivity in large-scale industrial applications.
Specifications
| Manufacturer | Awea |
| Model | SP-2016 HSS |
| Year | 2005 |
| Condition | Used |
| X-axis travel | 2,100 mm ( 82.7" ) |
| Y-axis travel | 1,600 mm ( 63.0" ) |
| Z-Axis Travel | 760 mm ( 30.0" ) |
| Table size | 2,310 x 1,500 mm( 90.9" x 59.0" ) |
| Table load capacity | 8,000 kg( 17,600 lb ) |
| Dist.between columns | 1,700 mm ( 66.9" ) |
| Spindle speed | 10 ~ 15,000 rpm |
| Spindle taper | 40 |
| Dist. from spindle nose to table top | 160 ~ 920 mm( 6.3" ~ 36.2" ) |
| X / Y axes-rapids | 20,000 mm/min.( 787.4 IPM ) |
| Z-axis rapids | 15,000 mm/min.( 590.6 IPM ) |
| Cutting feed rate | 10 ~ 15,000mm/min.( 0.4 ~ 590.6IPM ) |

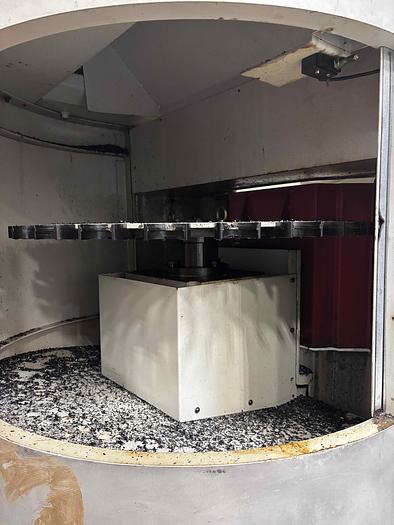

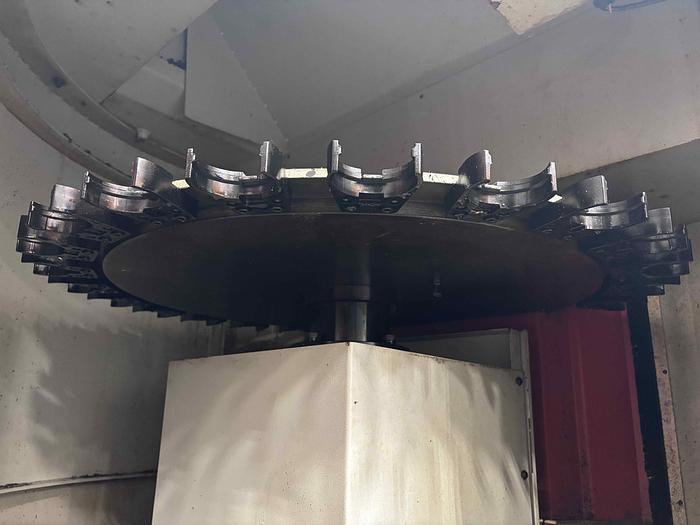

| Tool magazine capacity | 19 |
| Max. tool length | 300 mm ( 11.8" ) |
| Max. toolweight | 7 kg ( 15lb ) |
| Approximate Dimensions (L X W X H) | 264" x 184" x 153 " |
