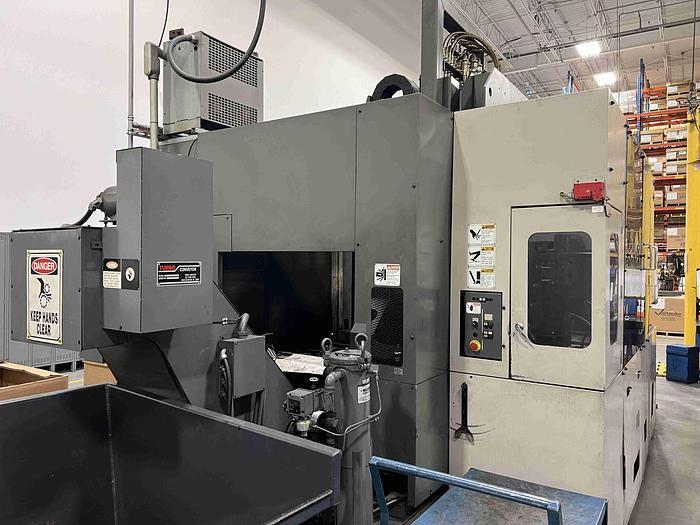

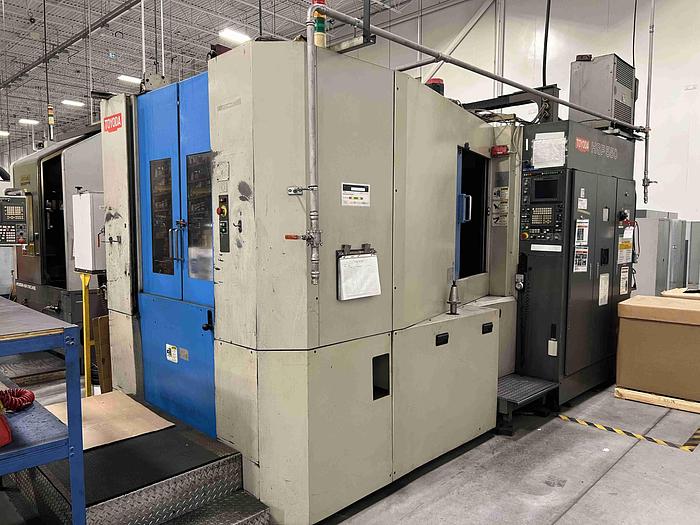

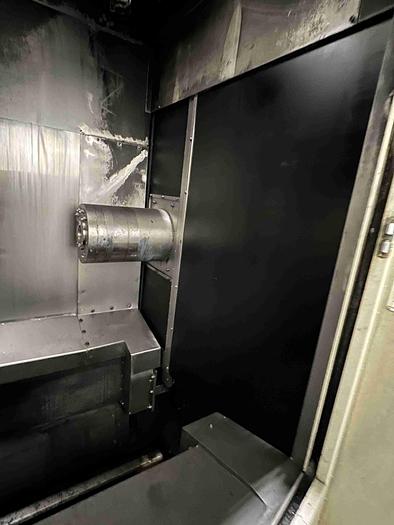

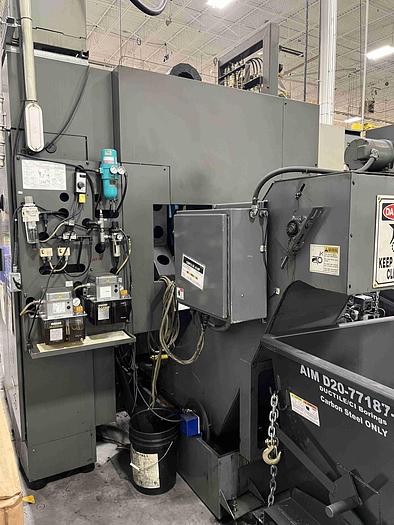

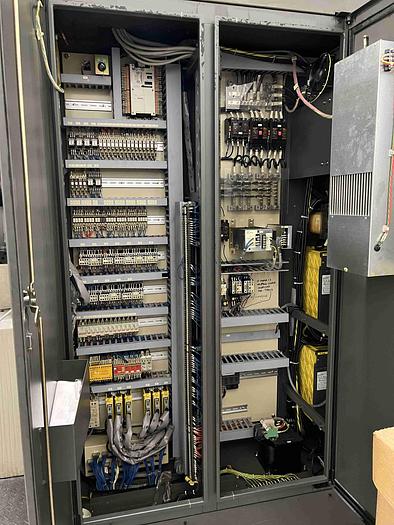

TOYODA HSP-550 HORIZONTAL MACHINING CENTERS
![Used TOYODA HSP-550 HORIZONTAL MACHINING CENTERS](https://i.machineryhost.com/c1a3d34711ab5d85335331ca0e57f067/fa070f531e4c638c64f61ad009b6e127/large-used-toyoda-hsp-550-horizontal-machining-centers.jpg)
TOYODA HSP-550 HORIZONTAL MACHINING CENTERS
Available quantity:1
Description
EQUIPPED WITH:

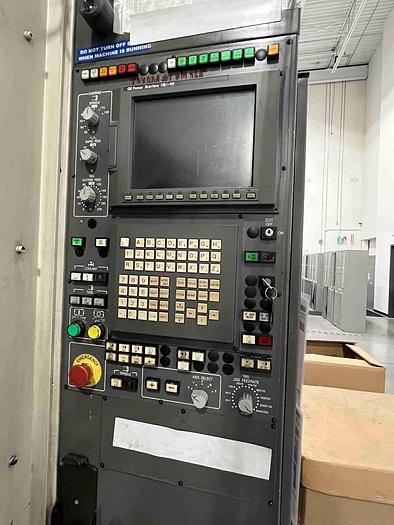

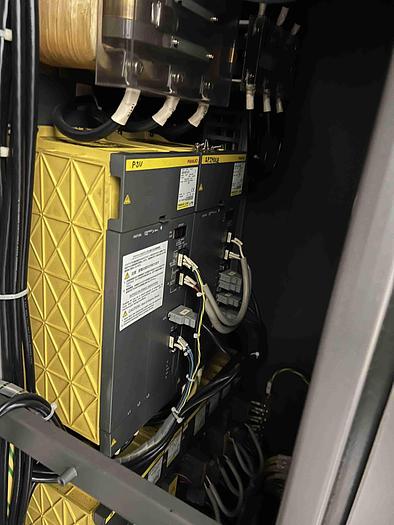

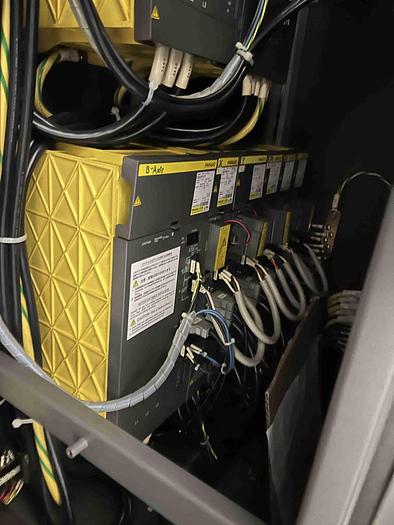

FANUC 18i-M CNC CONTROL

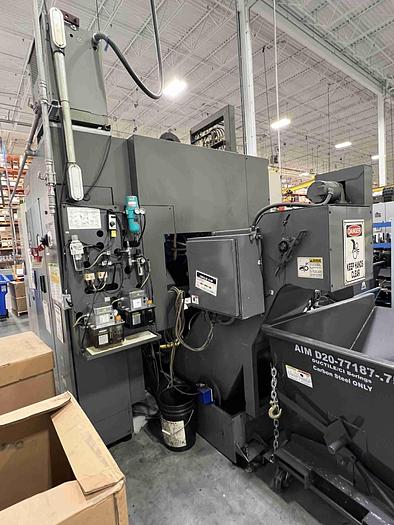

CHIP CONVEYOR

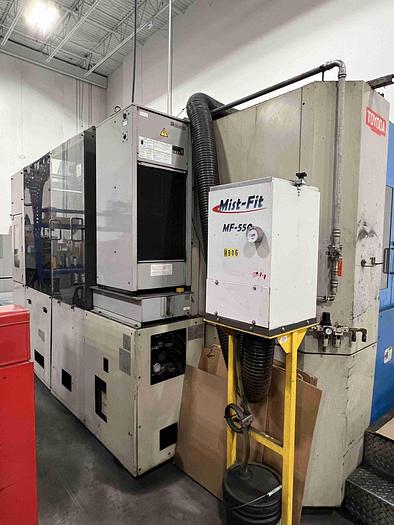

MIST COLLECTOR
COOLANT TANK
THROUGH SPINDLE COOLANT
Specifications
Manufacturer | Toyoda |
Model | HSP-550 |
Year | 2001 |
Condition | Used |

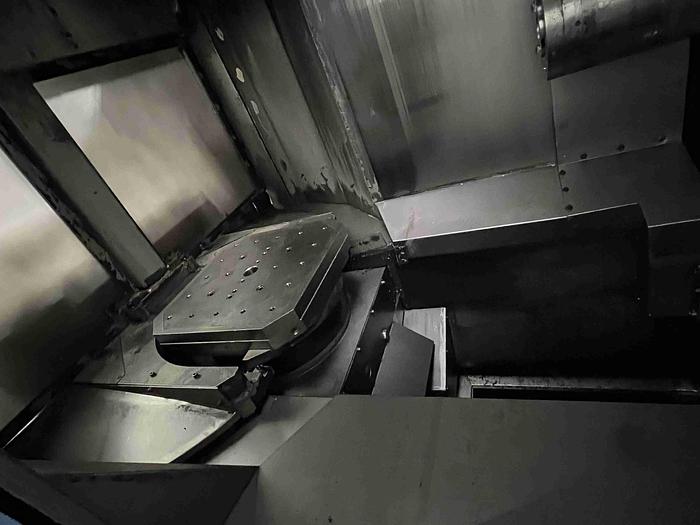

Pallet size | 21.6" x 21.6" |
NUMBER OF PALLETS | 2 |
X Axis Travel | 29.52" |
Y Axis Travel | 29.52" |
Z Axis Travel | 29.52" |
SPINDLE MOTOR | 30 HP AC |
SPINDLE TAPER | 50 |
SPINDLE SPEED | 14,000 RPM |
RAPID TRAVEL RATE-X&Y AXES | 1890 IPM |
RAPID TRAVEL RATE Z | 2362 IPM |

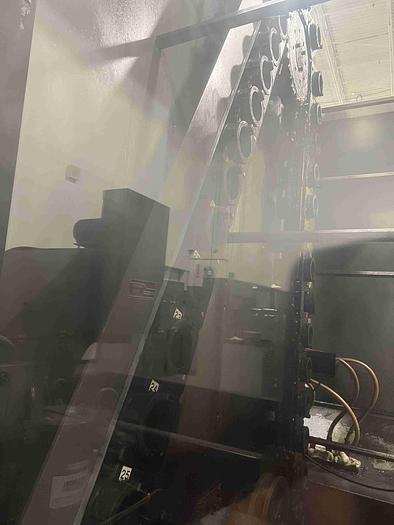

TOOL CHANGER CAPACITY | 30 ATC |
MAX TOOL DIA. | 4.72" |
MAX TOOL LENGTH | 15.75" |
MAX TOOL WEIGHT | 59.4 LBS. |
TOOL CHANGE TIME | 2 SEC. |
MACHINE WEIGHT | 30,874 LBS. |
APPROX. MACHINE DIMS (L X W X H) | 224" x 119" x 118" |
