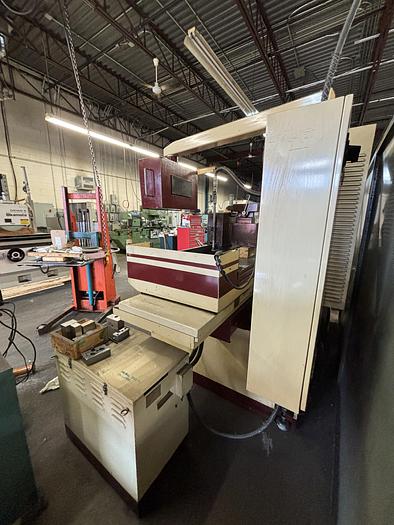

Chevalier FSG1632AD Surface Grinder
Sold

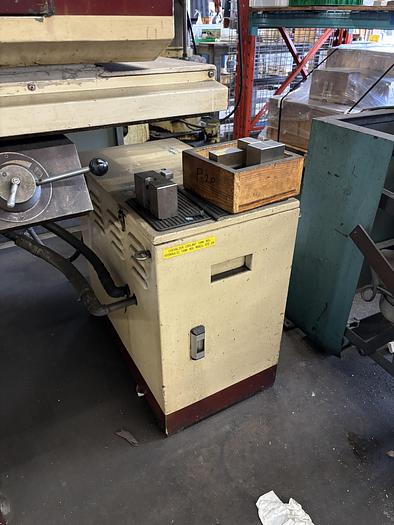

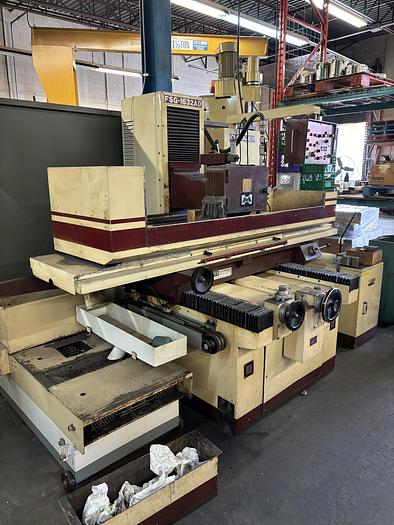

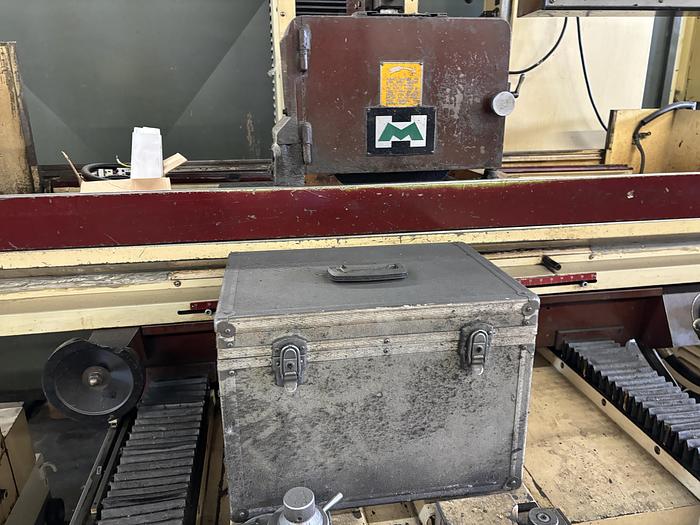

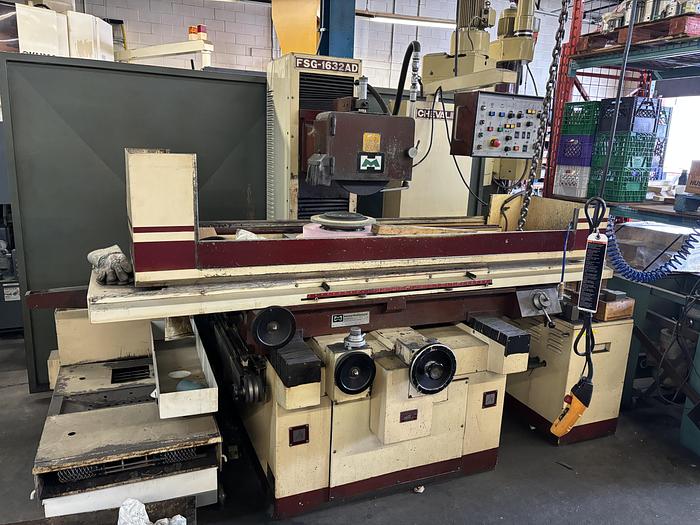

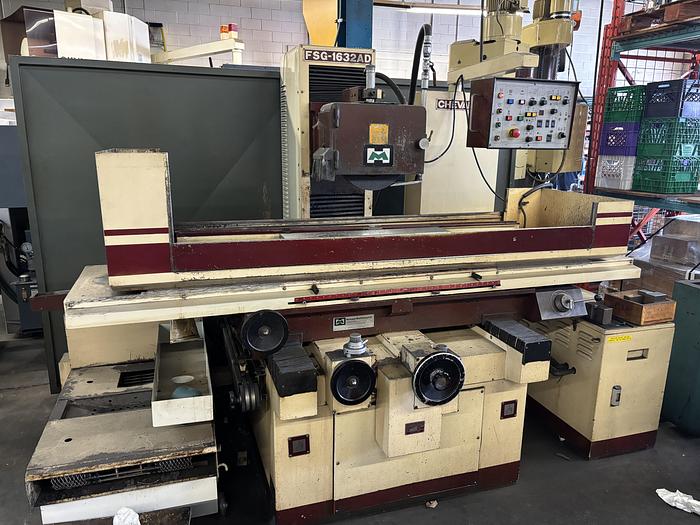

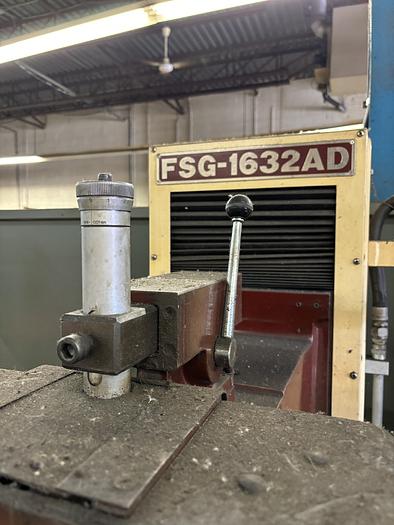

Chevalier FSG1632AD Surface Grinder
Available quantity:1
Description
Equipped With

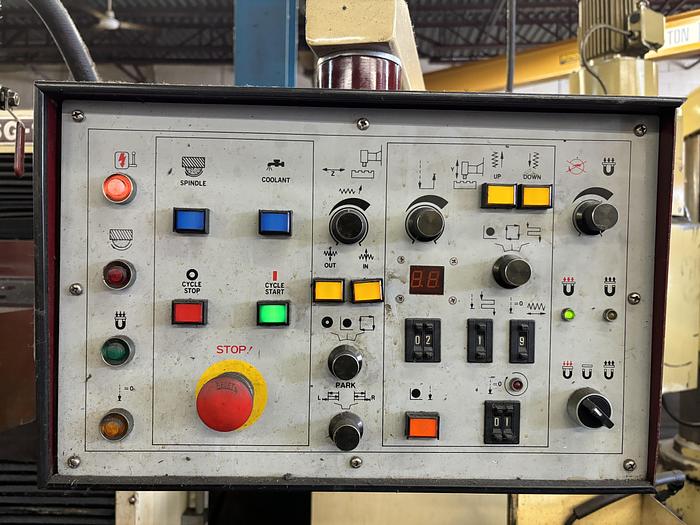

3 Axis Power Feed
The Used Chevalier FSG1632AD Surface Grinder is equipped with 3-axis power feed, allowing for precise and automated control over grinding operations. This feature makes it suitable for achieving high-quality surface finishes in various industrial grinding tasks.
Specifications
| Manufacturer | Chevalier |
| Model | FSG-1632AD |
| Condition | Used |

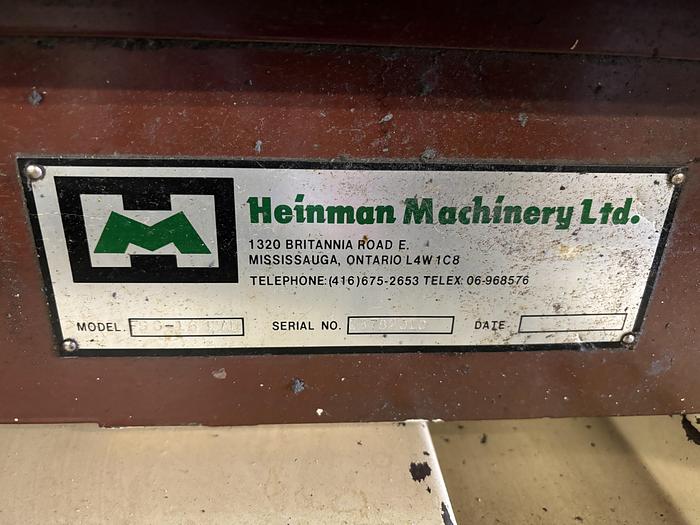

| Serial Number | G3782010 |
| Stock Number | GRD-CHV-899 |
| Grinding Capacity | 16″ X 32″ |
| Max Spindle Height From Table | 24″ |
| Longitudinal Table Travel | 35-3/8″ |
| Table Speed Range | 5 – 25 FPM |
| Spindle Speed | 3450 RPM |

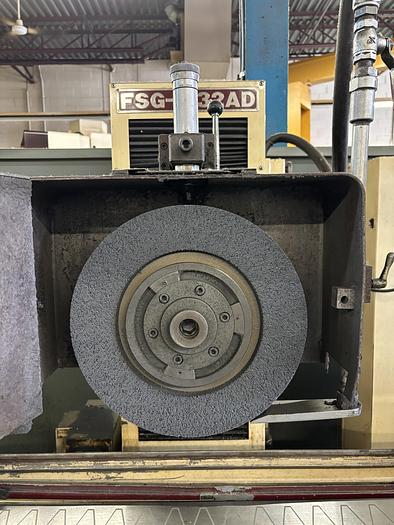

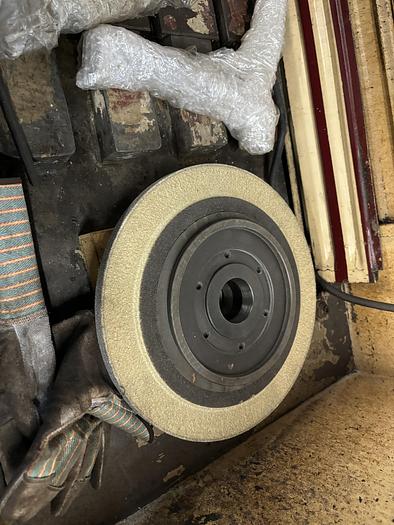

| Grinding Wheel Size | 14″ X 2″ X 5″ |

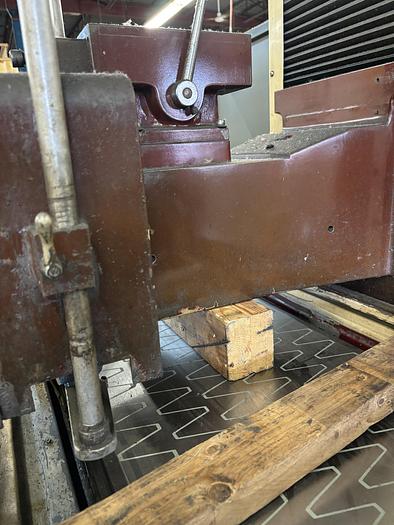

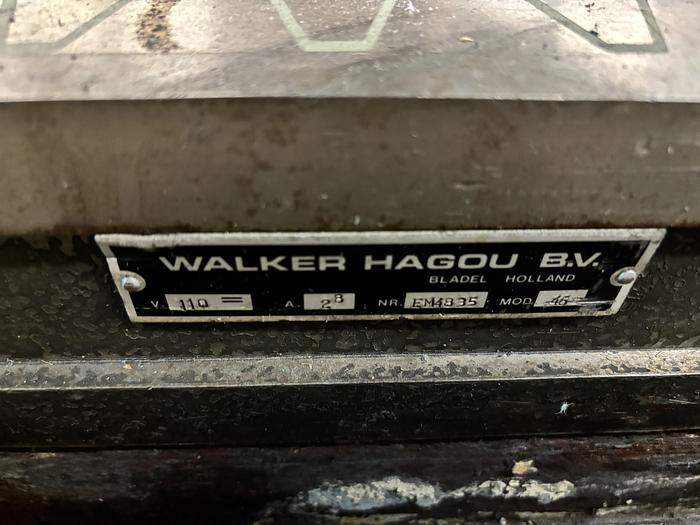

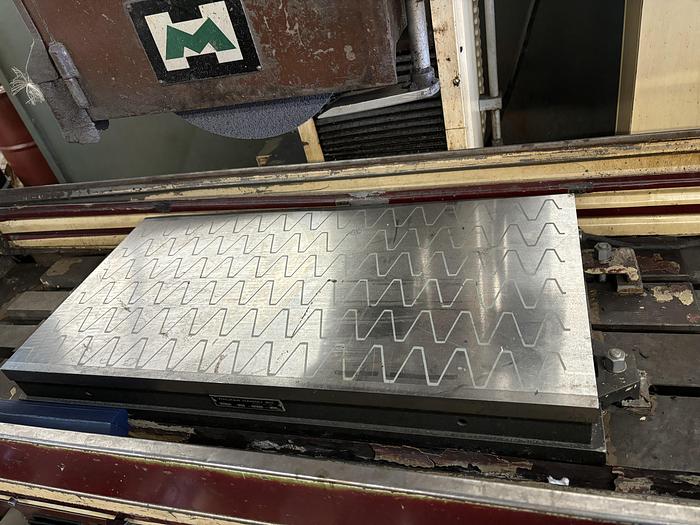

| Mag Chuck Size | 32-3/8″ X 15-3/4″ |
| Increment of down feed | 0.00005″ – 0.002″ |
| Automatic Cross Feed | 0.005 IPR |
| Power Elevation | 12 FPM |
| Spindle Motor Output | 5 HP |

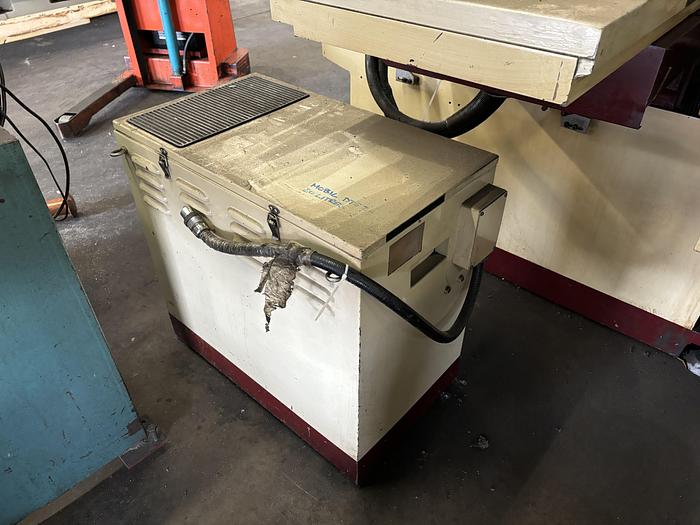

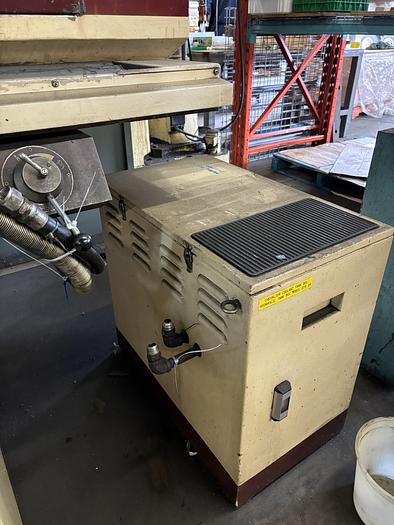

| Hydraulic Motor Output | 2 HP |
| Approx. Shipping Weight | 6,500 Lbs. |
| Approx. Shipping Dimensions | 132″ x 68″ x 86 |
