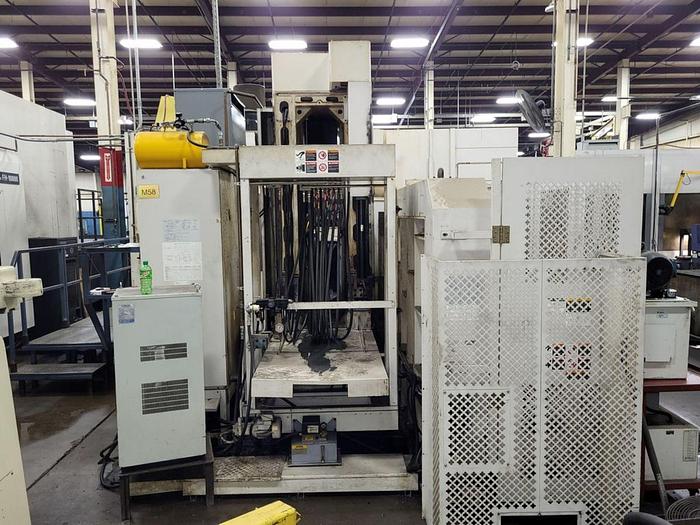

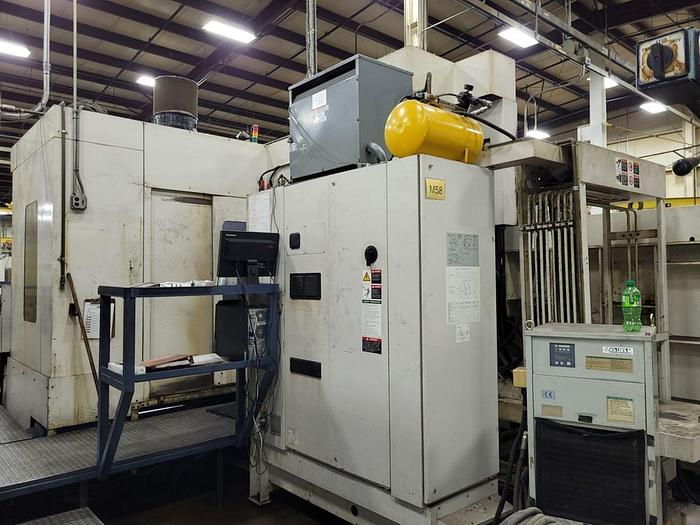

Daewoo Model ACE-H100 Horizontal Machining Center
Daewoo Model ACE-H100 Horizontal Machining Center
Available quantity:1
Description
The Pre-Owned Daewoo Model ACE-H100 Horizontal Machining Center is a reliable and versatile machine equipped with a Fanuc Series 16i-MB CNC controller for precision and control. Key features include rigid tapping, probe capability, and Cooljet 3.7 kW & 5.5 kW high-pressure coolant with coolant through spindle for enhanced machining efficiency. Additional equipment includes a Kaukan K0-6PTS cooler (2003), filtration system, Mayfran CT-20 chip conveyor, and a work platform, making it an excellent choice for demanding industrial applications.
Specifications
| Manufacturer | Daewoo |
| Model | ACE-H100 |
| Year | 2003 |
| Condition | Used |
| Serial Number | AH100116 |
| Stock Number | HMC-DSN-922 |
| X-Axis Travel | 78.7 in. |
| Y-Axis Travel | 49.2 in. |
| Z-Axis Travel | 49.2 in. |

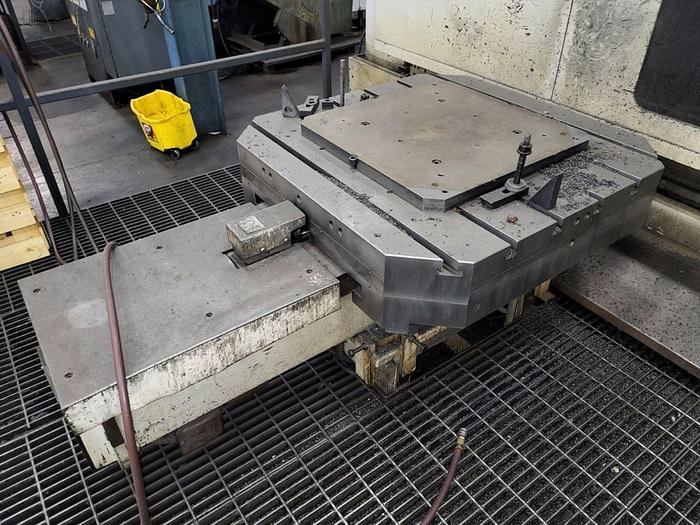

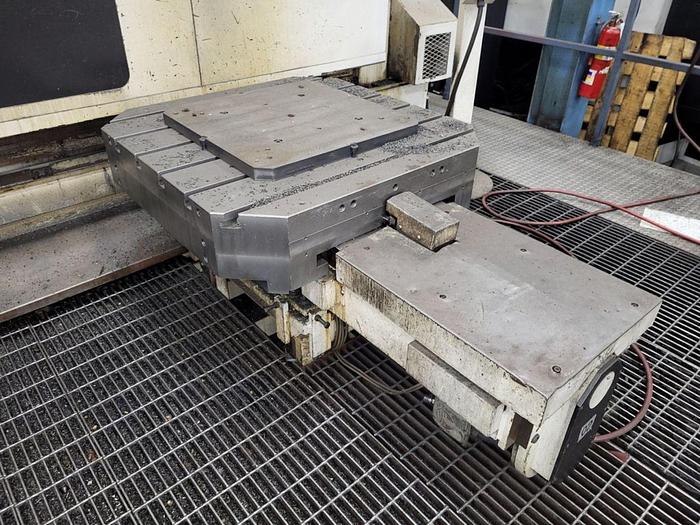

| Pallet Table Size | 39.4 in. x 39.4 in. |
| Pallet table indexing | 1-degree index |
| X ,Y,Z - Rapid Traverse | 472 IPM |
| Spindle Speed | 25-4,500 RPM |
| Spindle Motor | 35HP |

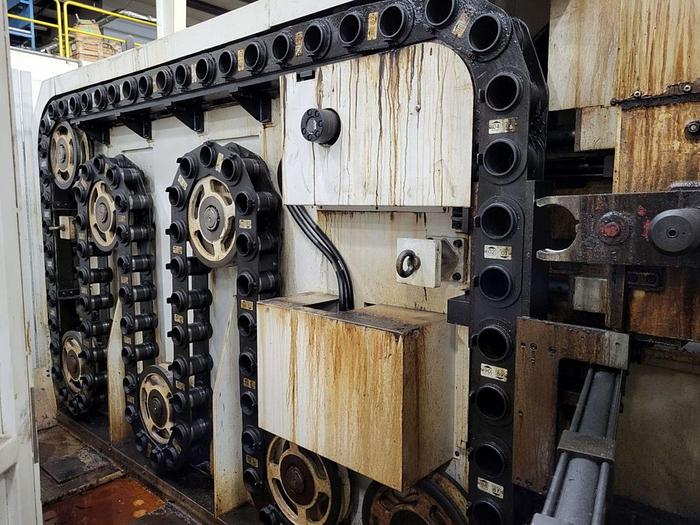

| Tool Magazine Capacity | 90 |
| Chip-to-Chip Tool Change | 12 sec. |
| Max. Tool Length | 23.6 in. |
| Max. Tool Dia | 11.8 in. |
Equipped With
Fanuc Series 16i-MB CNC
Rigid Tapping
Probe Capability

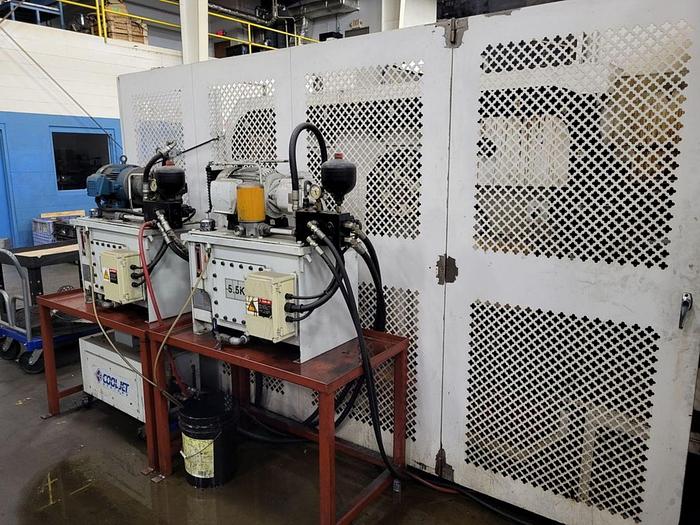

Cooljet 3.7 kW & 5.5 Kw High-Pressure Coolant
Coolant Thru Spindle
Kaukan K0-6PTS Cooler S/N: 008501 (2003)
Filtration System

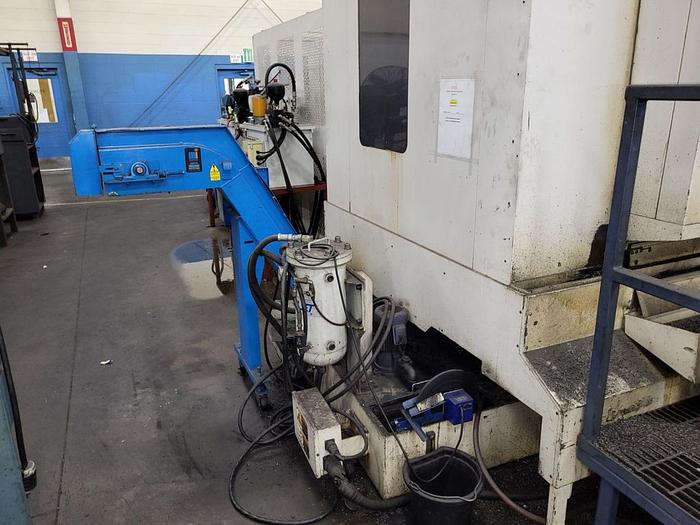

Mayfran CT-20 Chip Conveyor S/N: 19M3467
Work Platform
