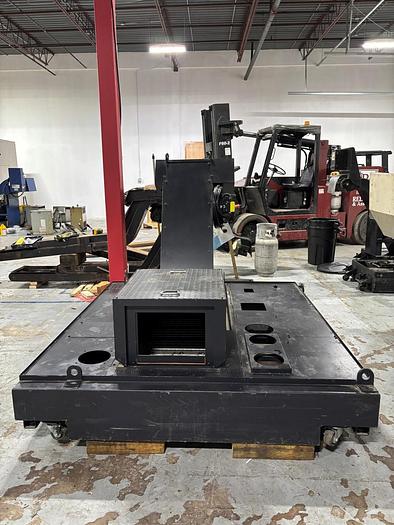

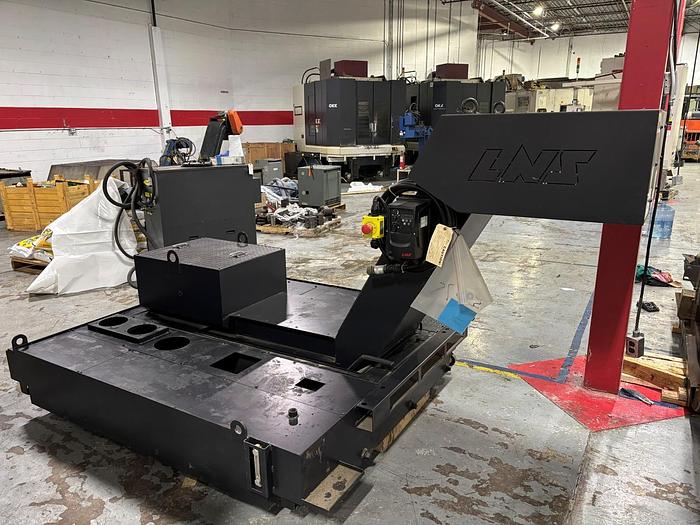

LNS TURBO HINGE BELT CHIP CONVEYOR
LNS TURBO HINGE BELT CHIP CONVEYOR
Available quantity:2
Description
Description:
Turbo HB chip conveyor - non-filtering, all types of chips and materials The Turbo Hinge Belt chip conveyor is a general purpose conveyor to remove large and stringy chips from CNC machining operations. Therefore, hinge plate Chip Management Systems are the rugged workhorse of chip removal and are general purpose conveyors that work with all types of chips. In addition, our line of hinge belt Chip Management Systems meet the price and performance needs of today's value-oriented and high end CNC machine tools.
Specifications
| Manufacturer | LNS |

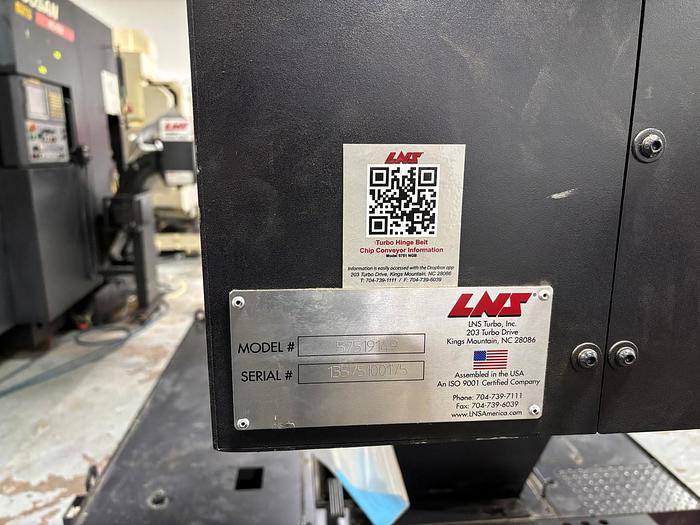

| Model | 13575100175 |
| Condition | Used |
| Serial Number | 13575100175 |
| Stock Number | CHP-LNS-76 |
| Chip Type | Coarse, Stringy |
| Filtration | None |
| Belt Pitch | Super Heavy Duty 50.8 - 63.5 mm (2 - 2.5") / Standard Duty (NGB) 40 mm (1.57") |
| Side Wing Height | Super Heavy Duty 151 - 216 mm (5.94 - 8.5") / Standard Duty (NGB) 130 mm (5.12") |
| Minimum Frame Width | Super Heavy Duty 310 mm (12.2") / Standard Duty (NGB) 216 mm (8.5") |
| Maximum Frame Width | Super Heavy Duty 1021 mm (40.2") / Standard Duty (NGB) 674 mm (26.54") |
| Width Increments | Standard Duty (NGB) 50.8 mm (2") |

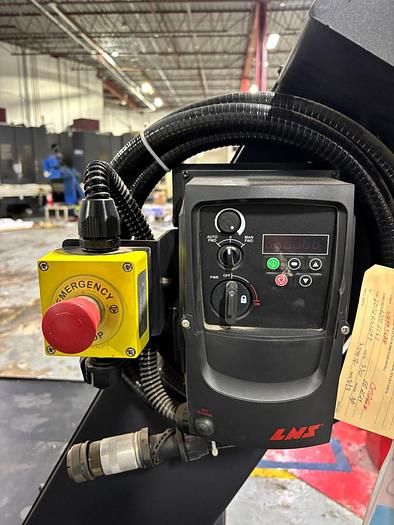

| Motor Power and Ratio | Super Heavy Duty 0.2 kW - 300:1 (1/4 HP - 300:1) / Standard Duty (NGB) 0.18 kW - 240:1 (1/4 HP - 240:1) |
| Machine Tool Spindle Power | Super Heavy Duty >22 kW (>30 HP) / Standard Duty (NGB) 0 - 22 kW (0 - 30 HP) |
